coveredby()

Datum coveredby

(

PG_FUNCTION_ARGS

)

Definition at line 2110 of file postgis/lwgeom_geos.c.

{
        SHARED_GSERIALIZED *shared_geom1 = ToastCacheGetGeometry(fcinfo, 0);
        SHARED_GSERIALIZED *shared_geom2 = ToastCacheGetGeometry(fcinfo, 1);
        const GSERIALIZED *geom1 = shared_gserialized_get(shared_geom1);
        const GSERIALIZED *geom2 = shared_gserialized_get(shared_geom2);
        GEOSGeometry *g1, *g2;
        int result;
        GBOX box1, box2;
        char *patt = "**F**F***";

        gserialized_error_if_srid_mismatch(geom1, geom2, __func__);

        /* A.CoveredBy(Empty) == FALSE */
        if ( gserialized_is_empty(geom1) || gserialized_is_empty(geom2) )
                PG_RETURN_BOOL(false);

        /*
         * short-circuit 1: if geom1 bounding box is not completely inside
         * geom2 bounding box we can return FALSE.
         */
        if ( gserialized_get_gbox_p(geom1, &box1) &&
                gserialized_get_gbox_p(geom2, &box2) )
        {
                if ( ! gbox_contains_2d(&box2, &box1) )
                {
                        PG_RETURN_BOOL(false);
                }

                POSTGIS_DEBUG(3, "bounding box short-circuit missed.");
        }
        /*
         * short-circuit 2: if geom1 is a point and geom2 is a polygon
         * call the point-in-polygon function.
         */
        if (is_point(geom1) && is_poly(geom2))
        {
                SHARED_GSERIALIZED *shared_gpoly = is_poly(geom1) ? shared_geom1 : shared_geom2;
                SHARED_GSERIALIZED *shared_gpoint = is_point(geom1) ? shared_geom1 : shared_geom2;
                const GSERIALIZED *gpoly = shared_gserialized_get(shared_gpoly);
                const GSERIALIZED *gpoint = shared_gserialized_get(shared_gpoint);
                RTREE_POLY_CACHE *cache = GetRtreeCache(fcinfo, shared_gpoly);
                int retval;

                POSTGIS_DEBUG(3, "Point in Polygon test requested...short-circuiting.");
                if (gserialized_get_type(gpoint) == POINTTYPE)
                {
                        LWGEOM* point = lwgeom_from_gserialized(gpoint);
                        int pip_result = pip_short_circuit(cache, lwgeom_as_lwpoint(point), gpoly);
                        lwgeom_free(point);

                        retval = (pip_result != -1); /* not outside */
                }
                else if (gserialized_get_type(gpoint) == MULTIPOINTTYPE)
                {
                        LWMPOINT* mpoint = lwgeom_as_lwmpoint(lwgeom_from_gserialized(gpoint));
                        uint32_t i;

                        retval = LW_TRUE;
                        for (i = 0; i < mpoint->ngeoms; i++)
                        {
                                LWPOINT *pt = mpoint->geoms[i];
                                if (lwpoint_is_empty(pt)) continue;
                                if (pip_short_circuit(cache, pt, gpoly) == -1)
                                {
                                        retval = LW_FALSE;
                                        break;
                                }
                        }

                        lwmpoint_free(mpoint);
                }
                else
                {
                        /* Never get here */
                        elog(ERROR,"Type isn't point or multipoint!");
                        PG_RETURN_NULL();
                }

                PG_RETURN_BOOL(retval);
        }
        else
        {
                POSTGIS_DEBUGF(3, "CoveredBy: type1: %d, type2: %d", gserialized_get_type(geom1), gserialized_get_type(geom2));
        }

        initGEOS(lwpgnotice, lwgeom_geos_error);

        g1 = POSTGIS2GEOS(geom1);

        if (!g1)
                HANDLE_GEOS_ERROR("First argument geometry could not be converted to GEOS");

        g2 = POSTGIS2GEOS(geom2);

        if (!g2)
        {
                GEOSGeom_destroy(g1);
                HANDLE_GEOS_ERROR("Second argument geometry could not be converted to GEOS");
        }

        result = GEOSRelatePattern(g1,g2,patt);

        GEOSGeom_destroy(g1);
        GEOSGeom_destroy(g2);

        if (result == 2) HANDLE_GEOS_ERROR("GEOSCoveredBy");

        PG_RETURN_BOOL(result);
}

References gbox_contains_2d(), LWMPOINT::geoms, GetRtreeCache(), gserialized_error_if_srid_mismatch(), gserialized_get_gbox_p(), gserialized_get_type(), gserialized_is_empty(), HANDLE_GEOS_ERROR, is_point(), is_poly(), LW_FALSE, LW_TRUE, lwgeom_as_lwmpoint(), lwgeom_as_lwpoint(), lwgeom_free(), lwgeom_from_gserialized(), lwgeom_geos_error(), lwmpoint_free(), lwpoint_is_empty(), MULTIPOINTTYPE, LWMPOINT::ngeoms, pip_short_circuit(), POINTTYPE, POSTGIS2GEOS(), and result.

Referenced by rt_raster_coveredby().

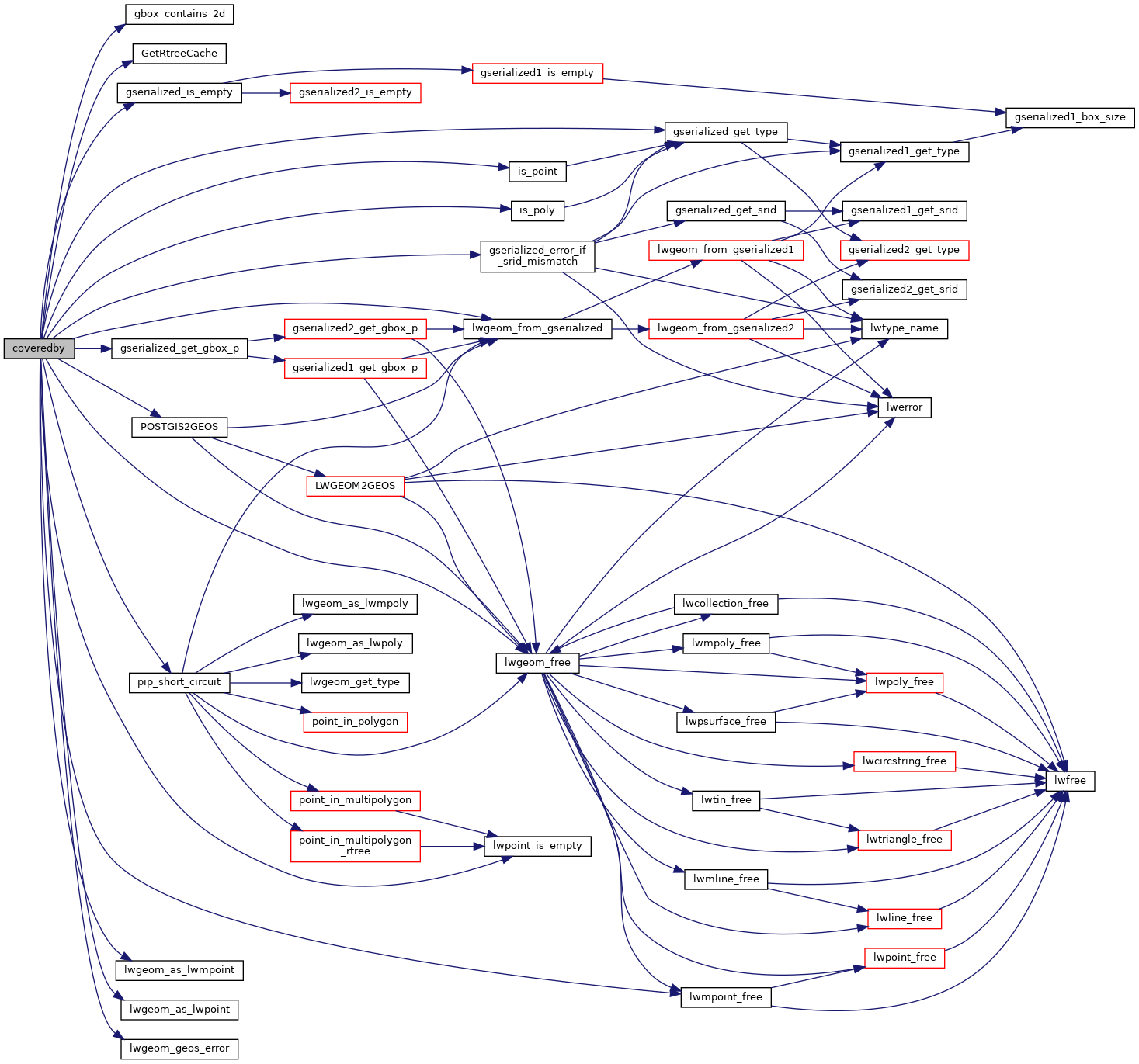

Here is the call graph for this function:

Here is the caller graph for this function:
