lw_dist2d_point_poly()

int lw_dist2d_point_poly	(	LWPOINT *	point,
		LWPOLY *	poly,
		DISTPTS *	dl
	)

1. see if pt in outer boundary. if no, then treat the outer ring like a line
2. if in the boundary, test to see if its in a hole. if so, then return dist to hole, else return 0 (point in polygon)

Definition at line 651 of file measures.c.

{
        const POINT2D *p = getPoint2d_cp(point->point, 0);

        /* Max distance? Check only outer ring.*/
        if (dl->mode == DIST_MAX)
                return lw_dist2d_pt_ptarray(p, poly->rings[0], dl);

        /* Return distance to outer ring if not inside it */
        if (ptarray_contains_point(poly->rings[0], p) == LW_OUTSIDE)
                return lw_dist2d_pt_ptarray(p, poly->rings[0], dl);

        /*
         * Inside the outer ring.
         * Scan though each of the inner rings looking to
         * see if its inside.  If not, distance==0.
         * Otherwise, distance = pt to ring distance
         */
        for (uint32_t i = 1; i < poly->nrings; i++)
                if (ptarray_contains_point(poly->rings[i], p) != LW_OUTSIDE)
                        return lw_dist2d_pt_ptarray(p, poly->rings[i], dl);

        /* Is inside the polygon */
        lw_dist2d_distpts_set(dl, 0.0, p, p);
        return LW_TRUE;
}

References DIST_MAX, getPoint2d_cp(), lw_dist2d_distpts_set(), lw_dist2d_pt_ptarray(), LW_OUTSIDE, LW_TRUE, DISTPTS::mode, LWPOLY::nrings, LWPOINT::point, ptarray_contains_point(), and LWPOLY::rings.

Referenced by lw_dist2d_distribute_bruteforce().

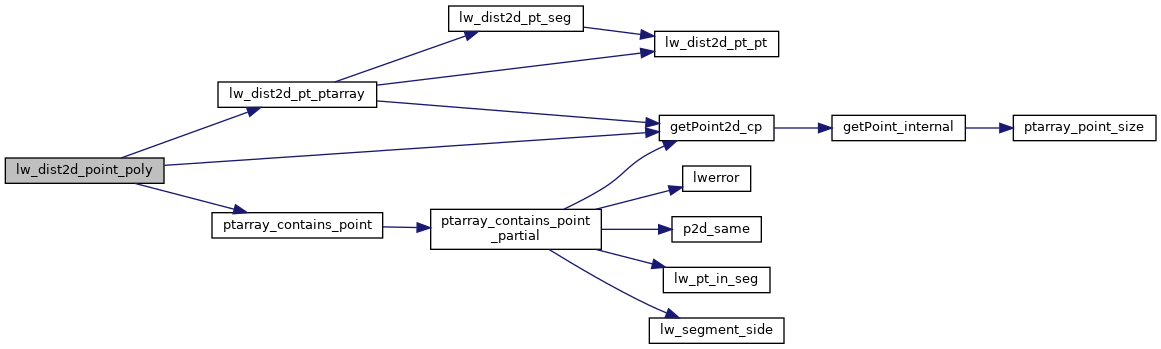

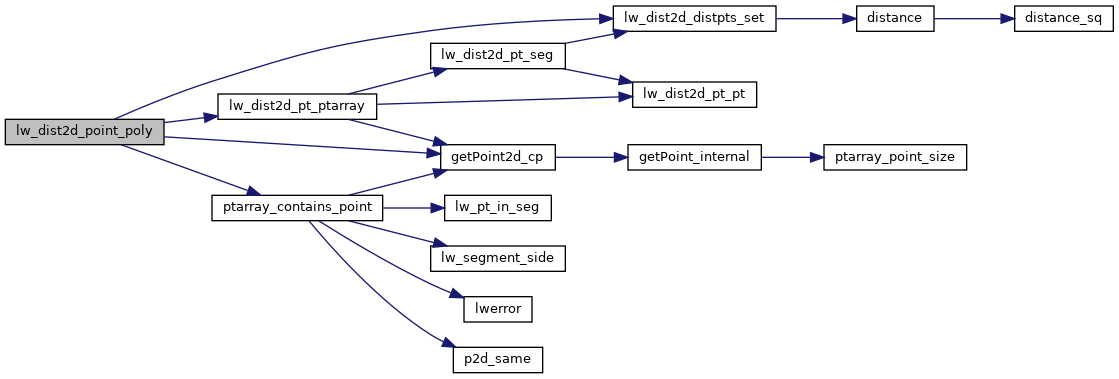

Here is the call graph for this function:

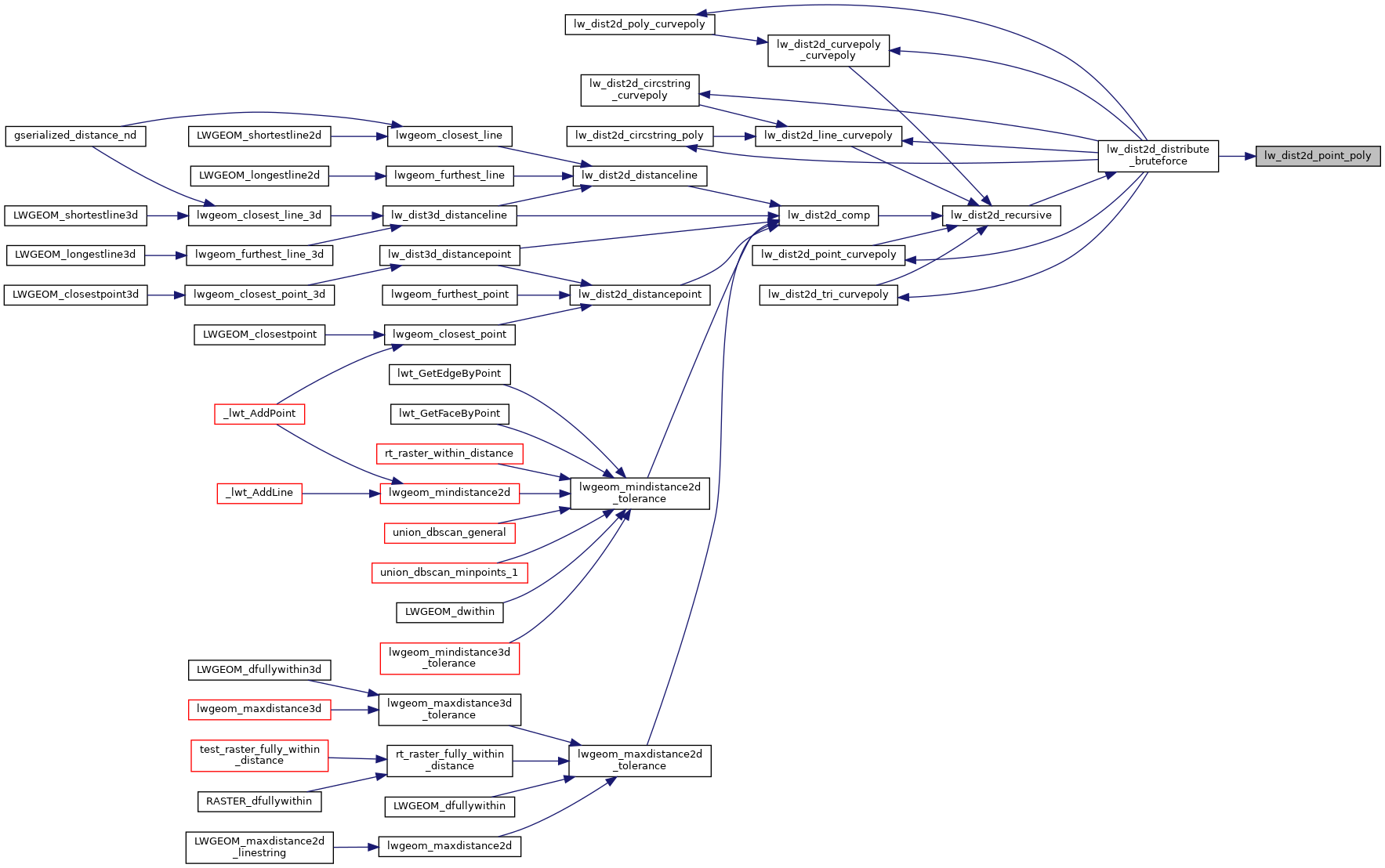

Here is the caller graph for this function:
