◆ rt_util_envelope_to_lwpoly()

LWPOLY* rt_util_envelope_to_lwpoly ( rt_envelope  env)

Definition at line 440 of file rt_util.c.

442  {
443  LWPOLY *npoly = NULL;
444  POINTARRAY **rings = NULL;
445  POINTARRAY *pts = NULL;
446  POINT4D p4d;
447
448  rings = (POINTARRAY **) rtalloc(sizeof (POINTARRAY*));
449  if (!rings) {
450  rterror("rt_util_envelope_to_lwpoly: Out of memory building envelope's geometry");
451  return NULL;
452  }
453  rings[0] = ptarray_construct(0, 0, 5);
454  if (!rings[0]) {
455  rterror("rt_util_envelope_to_lwpoly: Out of memory building envelope's geometry ring");
456  return NULL;
457  }
458
459  pts = rings[0];
460
461  /* Upper-left corner (first and last points) */
462  p4d.x = env.MinX;
463  p4d.y = env.MaxY;
464  ptarray_set_point4d(pts, 0, &p4d);
465  ptarray_set_point4d(pts, 4, &p4d);
466
467  /* Upper-right corner (we go clockwise) */
468  p4d.x = env.MaxX;
469  p4d.y = env.MaxY;
470  ptarray_set_point4d(pts, 1, &p4d);
471
472  /* Lower-right corner */
473  p4d.x = env.MaxX;
474  p4d.y = env.MinY;
475  ptarray_set_point4d(pts, 2, &p4d);
476
477  /* Lower-left corner */
478  p4d.x = env.MinX;
479  p4d.y = env.MinY;
480  ptarray_set_point4d(pts, 3, &p4d);
481
482  npoly = lwpoly_construct(SRID_UNKNOWN, 0, 1, rings);
483  if (npoly == NULL) {
484  rterror("rt_util_envelope_to_lwpoly: Could not build envelope's geometry");
485  return NULL;
486  }
487
488  return npoly;
489 }
POINTARRAY * ptarray_construct(char hasz, char hasm, uint32_t npoints)
Construct an empty pointarray, allocating storage and setting the npoints, but not filling in any inf...
Definition: ptarray.c:51
#define SRID_UNKNOWN
Unknown SRID value.
Definition: liblwgeom.h:229
LWPOLY * lwpoly_construct(int32_t srid, GBOX *bbox, uint32_t nrings, POINTARRAY **points)
Definition: lwpoly.c:43
void ptarray_set_point4d(POINTARRAY *pa, uint32_t n, const POINT4D *p4d)
Definition: lwgeom_api.c:370
void rterror(const char *fmt,...)
Wrappers used for reporting errors and info.
Definition: rt_context.c:199
void * rtalloc(size_t size)
Wrappers used for managing memory.
Definition: rt_context.c:171
double x
Definition: liblwgeom.h:428
double y
Definition: liblwgeom.h:428
double MinX
Definition: librtcore.h:165
double MaxX
Definition: librtcore.h:166
double MinY
Definition: librtcore.h:167
double MaxY
Definition: librtcore.h:168

References lwpoly_construct(), rt_envelope::MaxX, rt_envelope::MaxY, rt_envelope::MinX, rt_envelope::MinY, ptarray_construct(), ptarray_set_point4d(), rtalloc(), rterror(), SRID_UNKNOWN, POINT4D::x, and POINT4D::y.

Referenced by rt_raster_compute_skewed_raster().

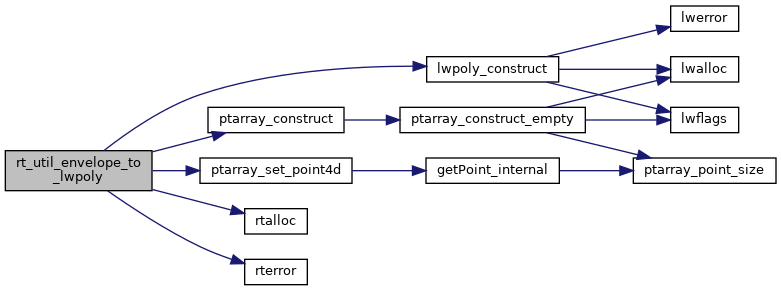

Here is the call graph for this function:

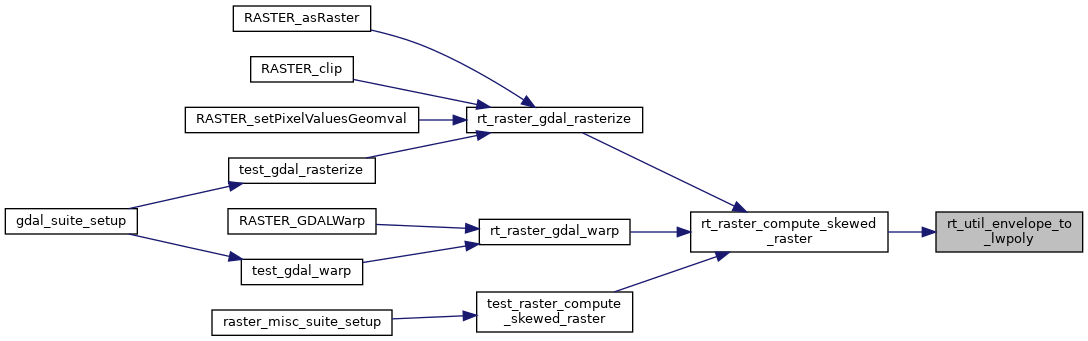

Here is the caller graph for this function:
