PostGIS  3.1.6dev-r@@SVN_REVISION@@

◆ ptarray_addPoint()

POINTARRAY* ptarray_addPoint ( const POINTARRAY pa,
uint8_t *  p,
size_t  pdims,
uint32_t  where
)

Add a point in a pointarray.

Parameters
pathe source POINTARRAY
pthe point to add
pdimsnumber of ordinates in p (2..4)
whereto insert the point. 0 prepends, pa->npoints appends
Returns
a newly constructed POINTARRAY using a newly allocated buffer for the actual points, or NULL on error.

Definition at line 509 of file ptarray.c.

510 {
511  POINTARRAY *ret;
512  POINT4D pbuf;
513  size_t ptsize = ptarray_point_size(pa);
514
515  LWDEBUGF(3, "pa %x p %x size %d where %d",
516  pa, p, pdims, where);
517
518  if ( pdims < 2 || pdims > 4 )
519  {
520  lwerror("ptarray_addPoint: point dimension out of range (%d)",
521  pdims);
522  return NULL;
523  }
524
525  if ( where > pa->npoints )
526  {
527  lwerror("ptarray_addPoint: offset out of range (%d)",
528  where);
529  return NULL;
530  }
531
532  LWDEBUG(3, "called with a %dD point");
533
534  pbuf.x = pbuf.y = pbuf.z = pbuf.m = 0.0;
535  memcpy((uint8_t *)&pbuf, p, pdims*sizeof(double));
536
537  LWDEBUG(3, "initialized point buffer");
538
540  FLAGS_GET_M(pa->flags), pa->npoints+1);
541
542
543  if ( where )
544  {
545  memcpy(getPoint_internal(ret, 0), getPoint_internal(pa, 0), ptsize*where);
546  }
547
548  memcpy(getPoint_internal(ret, where), (uint8_t *)&pbuf, ptsize);
549
550  if ( where+1 != ret->npoints )
551  {
552  memcpy(getPoint_internal(ret, where+1),
553  getPoint_internal(pa, where),
554  ptsize*(pa->npoints-where));
555  }
556
557  return ret;
558 }
#define FLAGS_GET_Z(flags)
Definition: liblwgeom.h:179
#define FLAGS_GET_M(flags)
Definition: liblwgeom.h:180
#define LWDEBUG(level, msg)
Definition: lwgeom_log.h:83
#define LWDEBUGF(level, msg,...)
Definition: lwgeom_log.h:88
void lwerror(const char *fmt,...)
Write a notice out to the error handler.
Definition: lwutil.c:190
static size_t ptarray_point_size(const POINTARRAY *pa)
Definition: lwinline.h:58
static uint8_t * getPoint_internal(const POINTARRAY *pa, uint32_t n)
Definition: lwinline.h:77
POINTARRAY * ptarray_construct(char hasz, char hasm, uint32_t npoints)
Construct an empty pointarray, allocating storage and setting the npoints, but not filling in any inf...
Definition: ptarray.c:51
double m
Definition: liblwgeom.h:428
double x
Definition: liblwgeom.h:428
double z
Definition: liblwgeom.h:428
double y
Definition: liblwgeom.h:428
lwflags_t flags
Definition: liblwgeom.h:445
uint32_t npoints
Definition: liblwgeom.h:441

References POINTARRAY::flags, FLAGS_GET_M, FLAGS_GET_Z, getPoint_internal(), LWDEBUG, LWDEBUGF, lwerror(), POINT4D::m, POINTARRAY::npoints, ptarray_construct(), ptarray_point_size(), POINT4D::x, POINT4D::y, and POINT4D::z.

Referenced by lwcircstring_addpoint(), LWGEOM2GEOS(), lwline_make_geos_friendly(), ptarray_close2d(), and ring_make_geos_friendly().

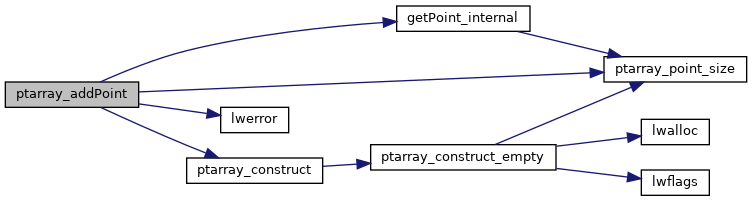

Here is the call graph for this function:

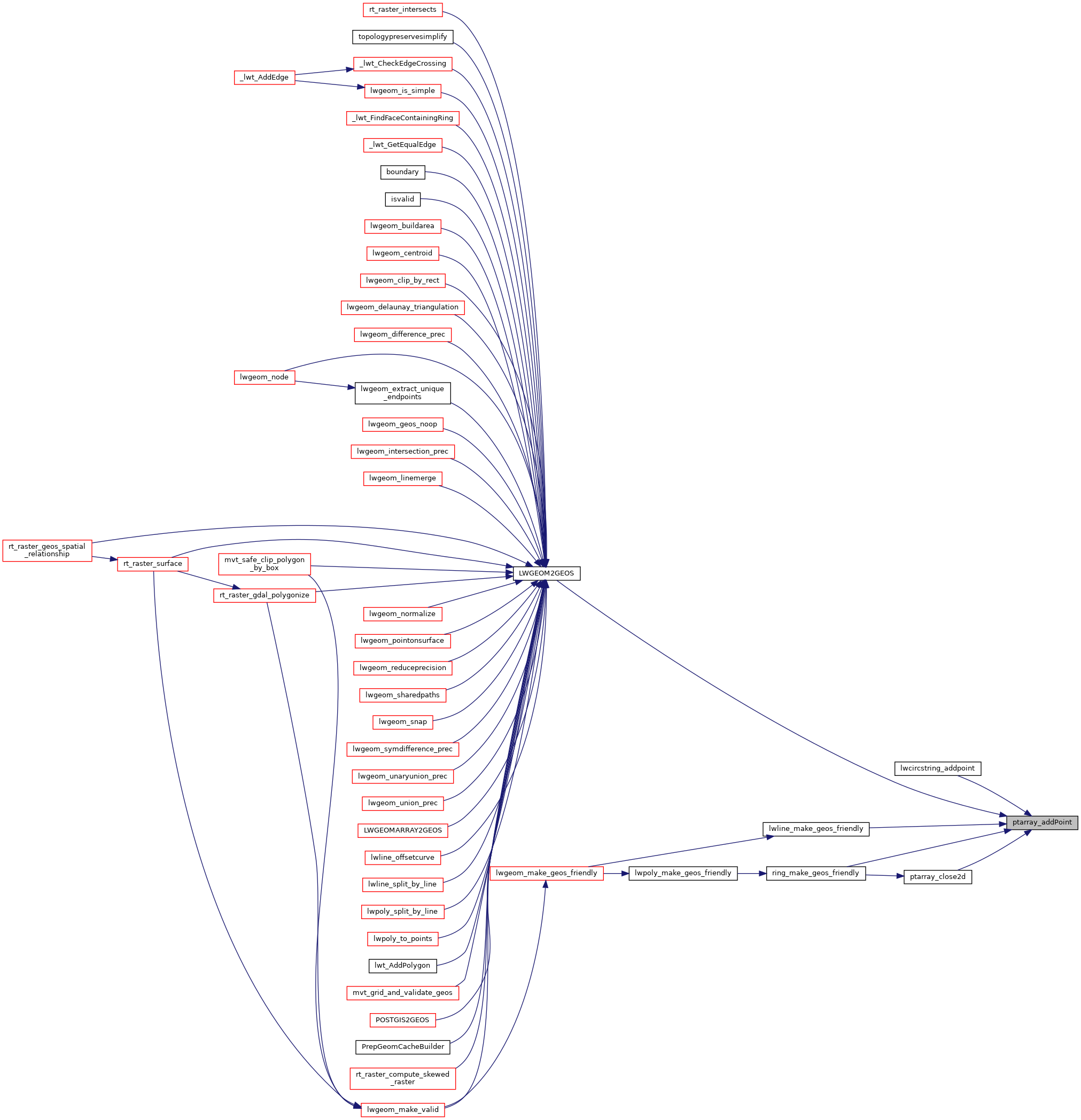

Here is the caller graph for this function:
