PostGIS  3.1.6dev-r@@SVN_REVISION@@

◆ test_lw_dist2d_ptarray_ptarrayarc()

static void test_lw_dist2d_ptarray_ptarrayarc ( void  )
static

Definition at line 1207 of file cu_measures.c.

1208 {
1209  /* int lw_dist2d_ptarray_ptarrayarc(const POINTARRAY *pa, const POINTARRAY *pb, DISTPTS *dl) */
1210  DISTPTS dl;
1211  int rv;
1212  LWLINE *lwline1;
1213  LWLINE *lwline2;
1214
1215  /* Unit semi-circle above X axis */
1216  lwline1 = lwgeom_as_lwline(lwgeom_from_text("LINESTRING(-1 0, 0 1, 1 0)"));
1217
1218  /* Line above top of semi-circle */
1219  lwline2 = lwgeom_as_lwline(lwgeom_from_text("LINESTRING(-2 2, -1 2, 1 2, 2 2)"));
1221  rv = lw_dist2d_ptarray_ptarrayarc(lwline2->points, lwline1->points, &dl);
1222  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1223  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1, 0.000001);
1224
1225  /* Reversed arguments, should fail */
1228  rv = lw_dist2d_ptarray_ptarrayarc(lwline1->points, lwline2->points, &dl);
1229  //printf("%s\n", cu_error_msg);
1230  CU_ASSERT_EQUAL( rv, LW_FAILURE );
1232  cu_error_msg,
1233  "lw_dist2d_ptarray_ptarrayarc called with non-arc input");
1234
1235  lwline_free(lwline2);
1236
1237  /* Line along side of semi-circle */
1238  lwline2 = lwgeom_as_lwline(lwgeom_from_text("LINESTRING(-2 -3, -2 -2, -2 2, -2 3)"));
1240  rv = lw_dist2d_ptarray_ptarrayarc(lwline2->points, lwline1->points, &dl);
1241  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1242  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1, 0.000001);
1243
1244  /* Four unit semi-circles surrounding the 2x2 box around origin */
1245  lwline_free(lwline1);
1246  lwline_free(lwline2);
1247  lwline1 = lwgeom_as_lwline(lwgeom_from_text("LINESTRING(-1 -1, -2 0, -1 1, 0 2, 1 1, 2 0, 1 -1, 0 -2, -1 -1)"));
1248  lwline2 = lwgeom_as_lwline(lwgeom_from_text("LINESTRING(-2.5 -3, -2.5 -2, -2.5 2, -2.5 3)"));
1249  rv = lw_dist2d_ptarray_ptarrayarc(lwline2->points, lwline1->points, &dl);
1250  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1251  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 0.5, 0.000001);
1252
1253  lwline_free(lwline2);
1254  lwline_free(lwline1);
1255 }
static LWGEOM * lwgeom_from_text(const char *str)
Definition: cu_measures.c:25
void cu_error_msg_reset()
char cu_error_msg[MAX_CUNIT_ERROR_LENGTH+1]
#define ASSERT_STRING_EQUAL(o, e)
LWLINE * lwgeom_as_lwline(const LWGEOM *lwgeom)
Definition: lwgeom.c:162
#define LW_FAILURE
Definition: liblwgeom.h:110
#define LW_SUCCESS
Definition: liblwgeom.h:111
void lwline_free(LWLINE *line)
Definition: lwline.c:67
void lw_dist2d_distpts_init(DISTPTS *dl, int mode)
Definition: measures.c:64
int lw_dist2d_ptarray_ptarrayarc(const POINTARRAY *pa, const POINTARRAY *pb, DISTPTS *dl)
Test each segment of pa against each arc of pb for distance.
Definition: measures.c:1257
#define DIST_MIN
Definition: measures.h:44
double distance
Definition: measures.h:51
Structure used in distance-calculations.
Definition: measures.h:50
POINTARRAY * points
Definition: liblwgeom.h:497

References ASSERT_STRING_EQUAL, cu_error_msg, cu_error_msg_reset(), DIST_MIN, DISTPTS::distance, lw_dist2d_distpts_init(), lw_dist2d_ptarray_ptarrayarc(), LW_FAILURE, LW_SUCCESS, lwgeom_as_lwline(), lwgeom_from_text(), lwline_free(), and LWLINE::points.

Referenced by measures_suite_setup().

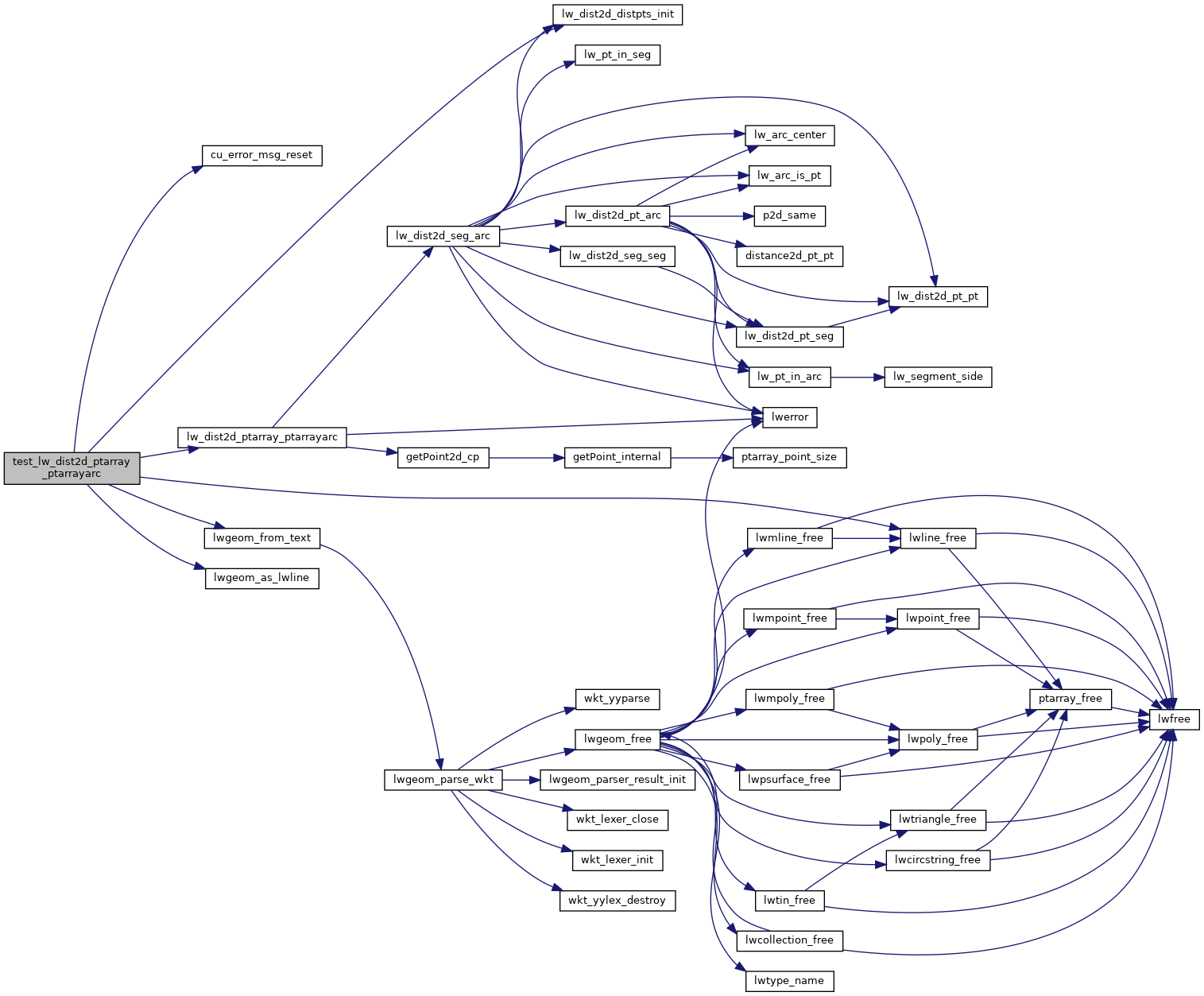

Here is the call graph for this function:
Here is the caller graph for this function:
