PostGIS  3.1.6dev-r@@SVN_REVISION@@

◆ lwgeom_calculate_gbox_geodetic()

int lwgeom_calculate_gbox_geodetic ( const LWGEOM geom,
GBOX gbox
)

Calculate the geodetic bounding box for an LWGEOM.

Z/M coordinates are ignored for this calculation. Pass in non-null, geodetic bounding box for function to fill out. LWGEOM must have been built from a GSERIALIZED to provide double aligned point arrays.

Definition at line 3018 of file lwgeodetic.c.

3019 {
3020  int result = LW_FAILURE;
3021  LWDEBUGF(4, "got type %d", geom->type);
3022
3023  /* Add a geodetic flag to the incoming gbox */
3024  gbox->flags = lwflags(FLAGS_GET_Z(geom->flags),FLAGS_GET_M(geom->flags),1);
3025
3026  switch (geom->type)
3027  {
3028  case POINTTYPE:
3030  break;
3031  case LINETYPE:
3032  result = lwline_calculate_gbox_geodetic((LWLINE *)geom, gbox);
3033  break;
3034  case POLYGONTYPE:
3036  break;
3037  case TRIANGLETYPE:
3039  break;
3040  case MULTIPOINTTYPE:
3041  case MULTILINETYPE:
3042  case MULTIPOLYGONTYPE:
3043  case POLYHEDRALSURFACETYPE:
3044  case TINTYPE:
3045  case COLLECTIONTYPE:
3047  break;
3048  default:
3049  lwerror("lwgeom_calculate_gbox_geodetic: unsupported input geometry type: %d - %s",
3050  geom->type, lwtype_name(geom->type));
3051  break;
3052  }
3053  return result;
3054 }
char result[OUT_DOUBLE_BUFFER_SIZE]
Definition: cu_print.c:267
#define COLLECTIONTYPE
Definition: liblwgeom.h:122
#define LW_FAILURE
Definition: liblwgeom.h:110
#define MULTILINETYPE
Definition: liblwgeom.h:120
#define LINETYPE
Definition: liblwgeom.h:117
#define MULTIPOINTTYPE
Definition: liblwgeom.h:119
#define POINTTYPE
LWTYPE numbers, used internally by PostGIS.
Definition: liblwgeom.h:116
#define FLAGS_GET_Z(flags)
Definition: liblwgeom.h:179
#define TINTYPE
Definition: liblwgeom.h:130
#define MULTIPOLYGONTYPE
Definition: liblwgeom.h:121
#define POLYGONTYPE
Definition: liblwgeom.h:118
#define POLYHEDRALSURFACETYPE
Definition: liblwgeom.h:128
const char * lwtype_name(uint8_t type)
Return the type name string associated with a type number (e.g.
Definition: lwutil.c:216
#define FLAGS_GET_M(flags)
Definition: liblwgeom.h:180
#define TRIANGLETYPE
Definition: liblwgeom.h:129
lwflags_t lwflags(int hasz, int hasm, int geodetic)
Construct a new flags bitmask.
Definition: lwutil.c:471
static int lwcollection_calculate_gbox_geodetic(const LWCOLLECTION *coll, GBOX *gbox)
Definition: lwgeodetic.c:2983
static int lwline_calculate_gbox_geodetic(const LWLINE *line, GBOX *gbox)
Definition: lwgeodetic.c:2940
static int lwtriangle_calculate_gbox_geodetic(const LWTRIANGLE *triangle, GBOX *gbox)
Definition: lwgeodetic.c:2976
static int lwpoint_calculate_gbox_geodetic(const LWPOINT *point, GBOX *gbox)
Definition: lwgeodetic.c:2934
static int lwpolygon_calculate_gbox_geodetic(const LWPOLY *poly, GBOX *gbox)
Definition: lwgeodetic.c:2946
#define LWDEBUGF(level, msg,...)
Definition: lwgeom_log.h:88
void lwerror(const char *fmt,...)
Write a notice out to the error handler.
Definition: lwutil.c:190
lwflags_t flags
Definition: liblwgeom.h:367
uint8_t type
Definition: liblwgeom.h:476
lwflags_t flags
Definition: liblwgeom.h:475

References COLLECTIONTYPE, GBOX::flags, LWGEOM::flags, FLAGS_GET_M, FLAGS_GET_Z, LINETYPE, LW_FAILURE, lwcollection_calculate_gbox_geodetic(), LWDEBUGF, lwerror(), lwflags(), lwline_calculate_gbox_geodetic(), lwpoint_calculate_gbox_geodetic(), lwpolygon_calculate_gbox_geodetic(), lwtriangle_calculate_gbox_geodetic(), lwtype_name(), MULTILINETYPE, MULTIPOINTTYPE, MULTIPOLYGONTYPE, POINTTYPE, POLYGONTYPE, POLYHEDRALSURFACETYPE, result, TINTYPE, TRIANGLETYPE, LWGEOM::type, and LWPOINT::type.

Referenced by CircTreePIP(), geography_area(), lwcollection_calculate_gbox_geodetic(), lwgeom_calculate_gbox(), lwgeom_covers_lwgeom_sphere(), lwgeom_distance_spheroid(), lwpoly_covers_point2d(), lwpoly_pt_outside(), test_gbox_from_spherical_coordinates(), test_gbox_utils(), test_spheroid_area(), and test_tree_circ_pip2().

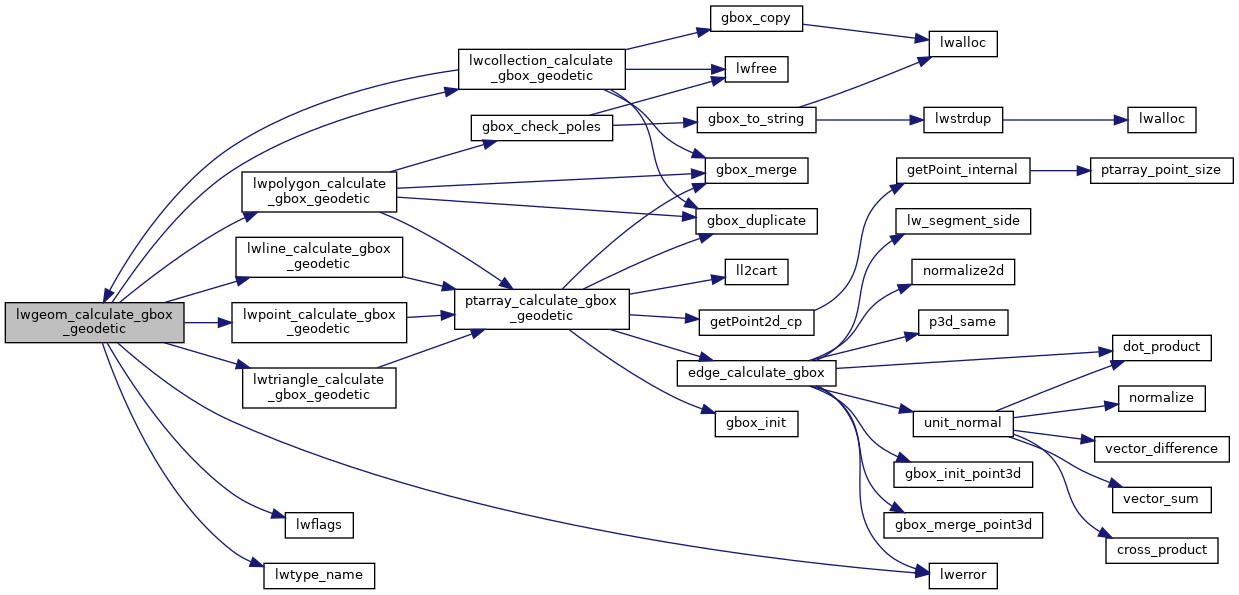

Here is the call graph for this function:

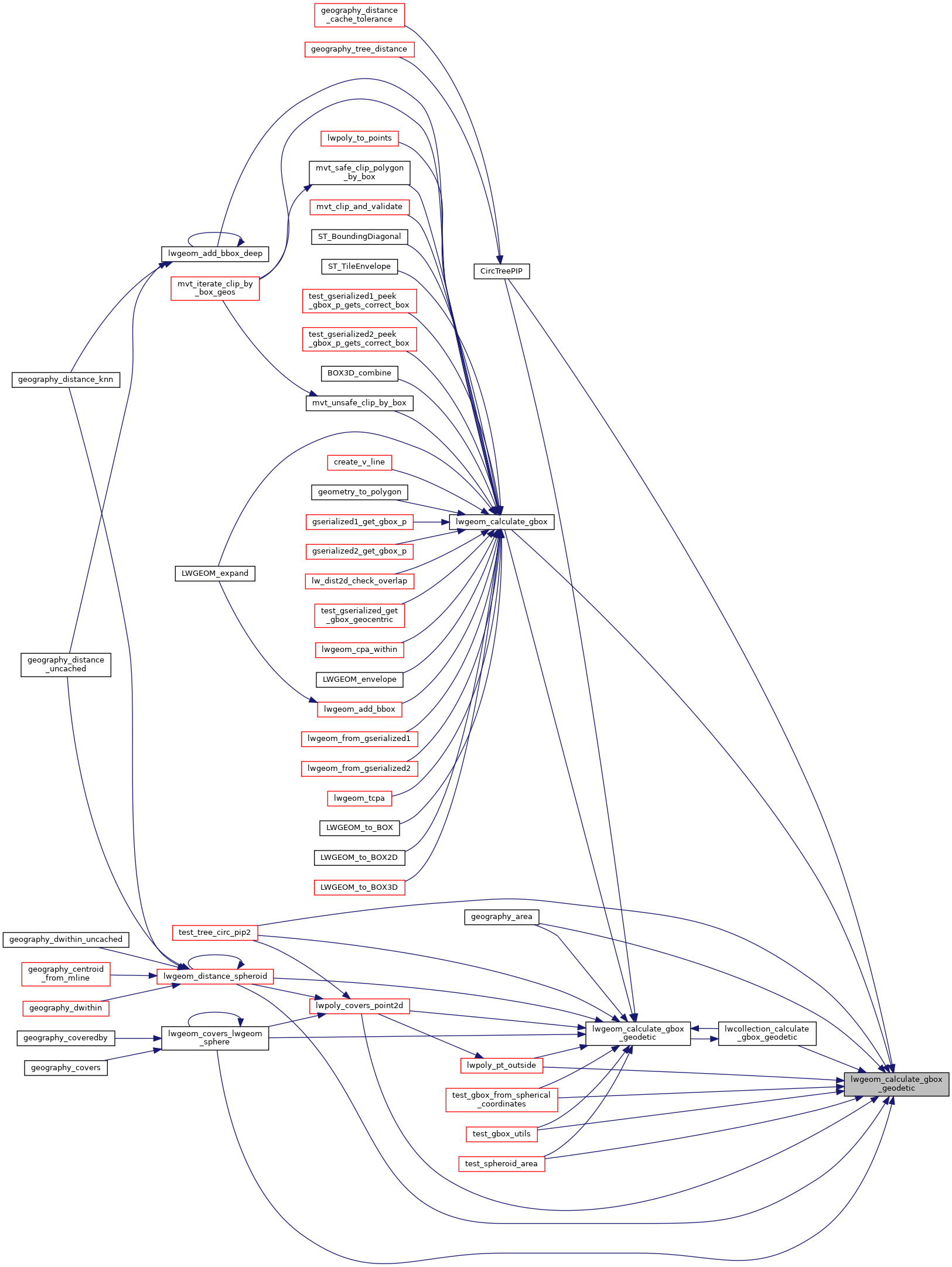

Here is the caller graph for this function:
