PostGIS  3.0.6dev-r@@SVN_REVISION@@

◆ gserialized_joinsel_internal()

double gserialized_joinsel_internal ( PlannerInfo *  root,
List *  args,
JoinType  jointype,
int  mode
)

Definition at line 1261 of file gserialized_estimate.c.

1262 {
1263  float8 selectivity;
1264  Oid relid1, relid2;
1265  ND_STATS *stats1, *stats2;
1266  Node *arg1 = (Node*) linitial(args);
1267  Node *arg2 = (Node*) lsecond(args);
1268  Var *var1 = (Var*) arg1;
1269  Var *var2 = (Var*) arg2;
1270
1271  POSTGIS_DEBUGF(2, "%s: entered function", __func__);
1272
1273  /* We only do column joins right now, no functional joins */
1274  /* TODO: handle g1 && ST_Expand(g2) */
1275  if (!IsA(arg1, Var) || !IsA(arg2, Var))
1276  {
1277  POSTGIS_DEBUGF(1, "%s called with arguments that are not column references", __func__);
1278  return DEFAULT_ND_JOINSEL;
1279  }
1280
1281  /* What are the Oids of our tables/relations? */
1282  relid1 = rt_fetch(var1->varno, root->parse->rtable)->relid;
1283  relid2 = rt_fetch(var2->varno, root->parse->rtable)->relid;
1284
1285  /* Pull the stats from the stats system. */
1286  stats1 = pg_get_nd_stats(relid1, var1->varattno, mode, false);
1287  stats2 = pg_get_nd_stats(relid2, var2->varattno, mode, false);
1288
1289  /* If we can't get stats, we have to stop here! */
1290  if (!stats1)
1291  {
1292  POSTGIS_DEBUGF(2, "%s: cannot find stats for \"%s\"", __func__, get_rel_name(relid2) ? get_rel_name(relid2) : "NULL");
1293  return DEFAULT_ND_JOINSEL;
1294  }
1295  else if (!stats2)
1296  {
1297  POSTGIS_DEBUGF(2, "%s: cannot find stats for \"%s\"", __func__, get_rel_name(relid2) ? get_rel_name(relid2) : "NULL");
1298  return DEFAULT_ND_JOINSEL;
1299  }
1300
1301  selectivity = estimate_join_selectivity(stats1, stats2);
1302  POSTGIS_DEBUGF(2, "got selectivity %g", selectivity);
1303  pfree(stats1);
1304  pfree(stats2);
1305  return selectivity;
1306 }
static ND_STATS * pg_get_nd_stats(const Oid table_oid, AttrNumber att_num, int mode, bool only_parent)
Pull the stats object from the PgSQL system catalogs.
#define DEFAULT_ND_JOINSEL
static float8 estimate_join_selectivity(const ND_STATS *s1, const ND_STATS *s2)
Given two statistics histograms, what is the selectivity of a join driven by the && or &&& operator?
args
Definition: ovdump.py:45
N-dimensional statistics structure.

References ovdump::args, DEFAULT_ND_JOINSEL, estimate_join_selectivity(), and pg_get_nd_stats().

Referenced by gserialized_gist_joinsel().

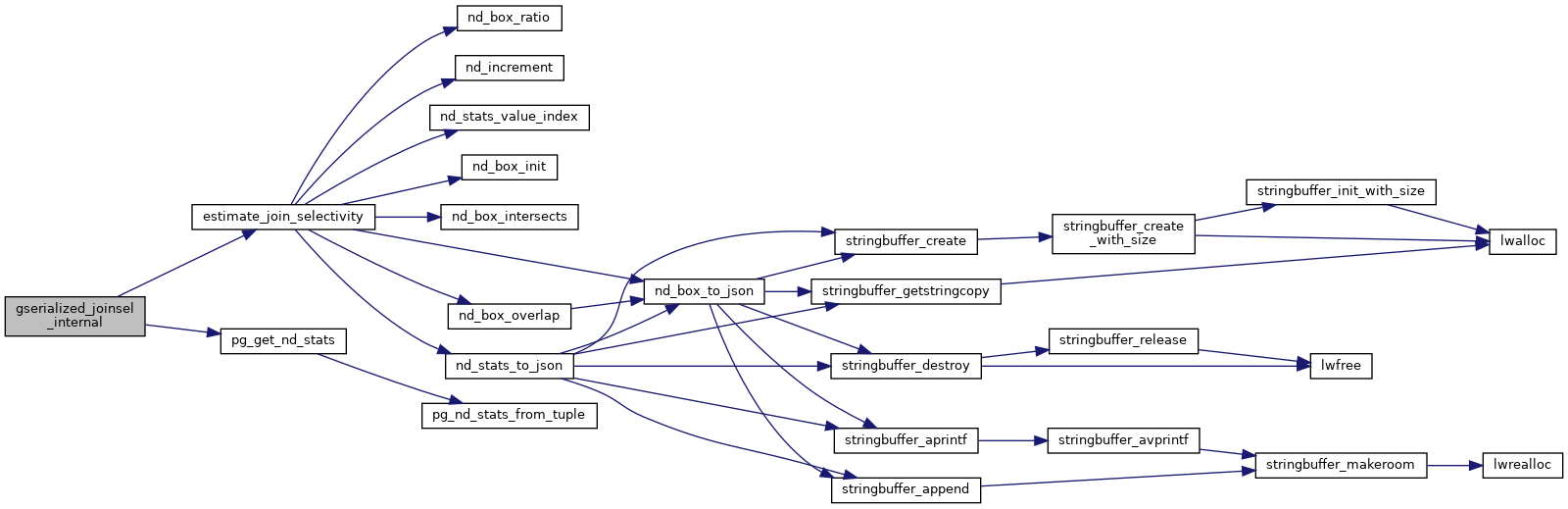

Here is the call graph for this function:
Here is the caller graph for this function:
