◆ RASTER_union_transfn()

Datum RASTER_union_transfn ( PG_FUNCTION_ARGS  )

Definition at line 2114 of file rtpg_mapalgebra.c.

2115 {
2116  MemoryContext aggcontext;
2117  MemoryContext oldcontext;
2118  rtpg_union_arg iwr = NULL;
2119  int skiparg = 0;
2120
2121  rt_pgraster *pgraster = NULL;
2122  rt_raster raster = NULL;
2123  rt_raster _raster = NULL;
2124  rt_band _band = NULL;
2125  int nband = 1;
2126  int noerr = 1;
2127  int isempty[2] = {0};
2128  int hasband[2] = {0};
2129  int nargs = 0;
2130  double _offset[4] = {0.};
2131  int nbnodata = 0; /* 1 if adding bands */
2132
2133  int i = 0;
2134  int j = 0;
2135  int k = 0;
2136
2137  rt_iterator itrset;
2138  char *utypename = NULL;
2139  rtpg_union_type utype = UT_LAST;
2140  rt_pixtype pixtype = PT_END;
2141  int hasnodata = 1;
2142  double nodataval = 0;
2143
2144  rt_raster iraster = NULL;
2145  rt_band iband = NULL;
2146  int reuserast = 0;
2147  int y = 0;
2148  uint16_t _dim[2] = {0};
2149  void *vals = NULL;
2150  uint16_t nvals = 0;
2151
2152  POSTGIS_RT_DEBUG(3, "Starting...");
2153
2154  /* cannot be called directly as this is exclusive aggregate function */
2155  if (!AggCheckCallContext(fcinfo, &aggcontext)) {
2156  elog(ERROR, "RASTER_union_transfn: Cannot be called in a non-aggregate context");
2157  PG_RETURN_NULL();
2158  }
2159
2160  /* switch to aggcontext */
2161  oldcontext = MemoryContextSwitchTo(aggcontext);
2162
2163  if (PG_ARGISNULL(0)) {
2164  POSTGIS_RT_DEBUG(3, "Creating state variable");
2165  /* allocate container in aggcontext */
2166  iwr = MemoryContextAlloc(aggcontext, sizeof(struct rtpg_union_arg_t));
2167  if (iwr == NULL) {
2168  MemoryContextSwitchTo(oldcontext);
2169  elog(ERROR, "RASTER_union_transfn: Could not allocate memory for state variable");
2170  PG_RETURN_NULL();
2171  }
2172
2173  iwr->numband = 0;
2174  iwr->bandarg = NULL;
2175
2176  skiparg = 0;
2177  }
2178  else {
2179  POSTGIS_RT_DEBUG(3, "State variable already exists");
2180  iwr = (rtpg_union_arg) PG_GETARG_POINTER(0);
2181  skiparg = 1;
2182  }
2183
2184  /* raster arg is NOT NULL */
2185  if (!PG_ARGISNULL(1)) {
2186  /* deserialize raster */
2187  pgraster = (rt_pgraster *) PG_DETOAST_DATUM(PG_GETARG_DATUM(1));
2188
2189  /* Get raster object */
2190  raster = rt_raster_deserialize(pgraster, FALSE);
2191  if (raster == NULL) {
2192
2193  rtpg_union_arg_destroy(iwr);
2194  PG_FREE_IF_COPY(pgraster, 1);
2195
2196  MemoryContextSwitchTo(oldcontext);
2197  elog(ERROR, "RASTER_union_transfn: Could not deserialize raster");
2198  PG_RETURN_NULL();
2199  }
2200  }
2201
2202  /* process additional args if needed */
2203  nargs = PG_NARGS();
2204  POSTGIS_RT_DEBUGF(4, "nargs = %d", nargs);
2205  if (nargs > 2) {
2206  POSTGIS_RT_DEBUG(4, "processing additional arguments");
2207
2208  /* if more than 2 arguments, determine the type of argument 3 */
2209  /* band number, UNION type or unionarg */
2210  if (!PG_ARGISNULL(2)) {
2211  Oid calltype = get_fn_expr_argtype(fcinfo->flinfo, 2);
2212
2213  switch (calltype) {
2214  /* UNION type */
2215  case TEXTOID: {
2216  int idx = 0;
2217  int numband = 0;
2218
2219  POSTGIS_RT_DEBUG(4, "Processing arg 3 as UNION type");
2220  nbnodata = 1;
2221
2222  utypename = text_to_cstring(PG_GETARG_TEXT_P(2));
2223  utype = rtpg_uniontype_index_from_name(rtpg_strtoupper(utypename));
2224  POSTGIS_RT_DEBUGF(4, "Union type: %s", utypename);
2225
2226  POSTGIS_RT_DEBUGF(4, "iwr->numband: %d", iwr->numband);
2227  /* see if we need to append new bands */
2228  if (raster) {
2229  idx = iwr->numband;
2230  numband = rt_raster_get_num_bands(raster);
2231  POSTGIS_RT_DEBUGF(4, "numband: %d", numband);
2232
2233  /* only worry about appended bands */
2234  if (numband > iwr->numband)
2235  iwr->numband = numband;
2236  }
2237
2238  if (!iwr->numband)
2239  iwr->numband = 1;
2240  POSTGIS_RT_DEBUGF(4, "iwr->numband: %d", iwr->numband);
2241  POSTGIS_RT_DEBUGF(4, "numband, idx: %d, %d", numband, idx);
2242
2243  /* bandarg set. only possible after the first call to function */
2244  if (iwr->bandarg) {
2245  /* only reallocate if new bands need to be added */
2246  if (numband > idx) {
2247  POSTGIS_RT_DEBUG(4, "Reallocating iwr->bandarg");
2248  iwr->bandarg = repalloc(iwr->bandarg, sizeof(struct rtpg_union_band_arg_t) * iwr->numband);
2249  }
2250  /* prevent initial values step happening below */
2251  else
2252  idx = iwr->numband;
2253  }
2254  /* bandarg not set, first call to function */
2255  else {
2256  POSTGIS_RT_DEBUG(4, "Allocating iwr->bandarg");
2257  iwr->bandarg = palloc(sizeof(struct rtpg_union_band_arg_t) * iwr->numband);
2258  }
2259  if (iwr->bandarg == NULL) {
2260
2261  rtpg_union_arg_destroy(iwr);
2262  if (raster != NULL) {
2263  rt_raster_destroy(raster);
2264  PG_FREE_IF_COPY(pgraster, 1);
2265  }
2266
2267  MemoryContextSwitchTo(oldcontext);
2268  elog(ERROR, "RASTER_union_transfn: Could not allocate memory for band information");
2269  PG_RETURN_NULL();
2270  }
2271
2272  /* set initial values for bands that are "new" */
2273  for (i = idx; i < iwr->numband; i++) {
2274  iwr->bandarg[i].uniontype = utype;
2275  iwr->bandarg[i].nband = i;
2276
2277  if (
2278  utype == UT_MEAN ||
2279  utype == UT_RANGE
2280  ) {
2281  iwr->bandarg[i].numraster = 2;
2282  }
2283  else
2284  iwr->bandarg[i].numraster = 1;
2285  iwr->bandarg[i].raster = NULL;
2286  }
2287
2288  break;
2289  }
2290  /* band number */
2291  case INT2OID:
2292  case INT4OID:
2293  if (skiparg)
2294  break;
2295
2296  POSTGIS_RT_DEBUG(4, "Processing arg 3 as band number");
2297  nband = PG_GETARG_INT32(2);
2298  if (nband < 1) {
2299
2300  rtpg_union_arg_destroy(iwr);
2301  if (raster != NULL) {
2302  rt_raster_destroy(raster);
2303  PG_FREE_IF_COPY(pgraster, 1);
2304  }
2305
2306  MemoryContextSwitchTo(oldcontext);
2307  elog(ERROR, "RASTER_union_transfn: Band number must be greater than zero (1-based)");
2308  PG_RETURN_NULL();
2309  }
2310
2311  iwr->numband = 1;
2312  iwr->bandarg = palloc(sizeof(struct rtpg_union_band_arg_t) * iwr->numband);
2313  if (iwr->bandarg == NULL) {
2314
2315  rtpg_union_arg_destroy(iwr);
2316  if (raster != NULL) {
2317  rt_raster_destroy(raster);
2318  PG_FREE_IF_COPY(pgraster, 1);
2319  }
2320
2321  MemoryContextSwitchTo(oldcontext);
2322  elog(ERROR, "RASTER_union_transfn: Could not allocate memory for band information");
2323  PG_RETURN_NULL();
2324  }
2325
2326  iwr->bandarg[0].uniontype = UT_LAST;
2327  iwr->bandarg[0].nband = nband - 1;
2328
2329  iwr->bandarg[0].numraster = 1;
2330  iwr->bandarg[0].raster = NULL;
2331  break;
2332  /* only other type allowed is unionarg */
2333  default:
2334  if (skiparg)
2335  break;
2336
2337  POSTGIS_RT_DEBUG(4, "Processing arg 3 as unionarg");
2338  if (!rtpg_union_unionarg_process(iwr, PG_GETARG_ARRAYTYPE_P(2))) {
2339
2340  rtpg_union_arg_destroy(iwr);
2341  if (raster != NULL) {
2342  rt_raster_destroy(raster);
2343  PG_FREE_IF_COPY(pgraster, 1);
2344  }
2345
2346  MemoryContextSwitchTo(oldcontext);
2347  elog(ERROR, "RASTER_union_transfn: Could not process unionarg");
2348  PG_RETURN_NULL();
2349  }
2350
2351  break;
2352  }
2353  }
2354
2355  /* UNION type */
2356  if (nargs > 3 && !PG_ARGISNULL(3)) {
2357  utypename = text_to_cstring(PG_GETARG_TEXT_P(3));
2358  utype = rtpg_uniontype_index_from_name(rtpg_strtoupper(utypename));
2359  iwr->bandarg[0].uniontype = utype;
2360  POSTGIS_RT_DEBUGF(4, "Union type: %s", utypename);
2361
2362  if (
2363  utype == UT_MEAN ||
2364  utype == UT_RANGE
2365  ) {
2366  iwr->bandarg[0].numraster = 2;
2367  }
2368  }
2369
2370  /* allocate space for pointers to rt_raster */
2371  for (i = 0; i < iwr->numband; i++) {
2372  POSTGIS_RT_DEBUGF(4, "iwr->bandarg[%d].raster @ %p", i, iwr->bandarg[i].raster);
2373
2374  /* no need to allocate */
2375  if (iwr->bandarg[i].raster != NULL)
2376  continue;
2377
2378  POSTGIS_RT_DEBUGF(4, "Allocating space for working rasters of band %d", i);
2379
2380  iwr->bandarg[i].raster = (rt_raster *) palloc(sizeof(rt_raster) * iwr->bandarg[i].numraster);
2381  if (iwr->bandarg[i].raster == NULL) {
2382
2383  rtpg_union_arg_destroy(iwr);
2384  if (raster != NULL) {
2385  rt_raster_destroy(raster);
2386  PG_FREE_IF_COPY(pgraster, 1);
2387  }
2388
2389  MemoryContextSwitchTo(oldcontext);
2390  elog(ERROR, "RASTER_union_transfn: Could not allocate memory for working raster(s)");
2391  PG_RETURN_NULL();
2392  }
2393
2394  memset(iwr->bandarg[i].raster, 0, sizeof(rt_raster) * iwr->bandarg[i].numraster);
2395
2396  /* add new working rt_raster but only if working raster already exists */
2397  if (i > 0 && !rt_raster_is_empty(iwr->bandarg[0].raster[0])) {
2398  for (j = 0; j < iwr->bandarg[i].numraster; j++) {
2399  iwr->bandarg[i].raster[j] = rt_raster_clone(iwr->bandarg[0].raster[0], 0); /* shallow clone */
2400  if (iwr->bandarg[i].raster[j] == NULL) {
2401
2402  rtpg_union_arg_destroy(iwr);
2403  if (raster != NULL) {
2404  rt_raster_destroy(raster);
2405  PG_FREE_IF_COPY(pgraster, 1);
2406  }
2407
2408  MemoryContextSwitchTo(oldcontext);
2409  elog(ERROR, "RASTER_union_transfn: Could not create working raster");
2410  PG_RETURN_NULL();
2411  }
2412  }
2413  }
2414  }
2415  }
2416  /* only raster, no additional args */
2417  /* only do this if raster isn't empty */
2418  else {
2419  POSTGIS_RT_DEBUG(4, "no additional args, checking input raster");
2420  nbnodata = 1;
2421  if (!rtpg_union_noarg(iwr, raster)) {
2422
2423  rtpg_union_arg_destroy(iwr);
2424  if (raster != NULL) {
2425  rt_raster_destroy(raster);
2426  PG_FREE_IF_COPY(pgraster, 1);
2427  }
2428
2429  MemoryContextSwitchTo(oldcontext);
2430  elog(ERROR, "RASTER_union_transfn: Could not check and balance number of bands");
2431  PG_RETURN_NULL();
2432  }
2433  }
2434
2435  /* init itrset */
2436  itrset = palloc(sizeof(struct rt_iterator_t) * 2);
2437  if (itrset == NULL) {
2438
2439  rtpg_union_arg_destroy(iwr);
2440  if (raster != NULL) {
2441  rt_raster_destroy(raster);
2442  PG_FREE_IF_COPY(pgraster, 1);
2443  }
2444
2445  MemoryContextSwitchTo(oldcontext);
2446  elog(ERROR, "RASTER_union_transfn: Could not allocate memory for iterator arguments");
2447  PG_RETURN_NULL();
2448  }
2449
2450  /* by band to UNION */
2451  for (i = 0; i < iwr->numband; i++) {
2452
2453  /* by raster */
2454  for (j = 0; j < iwr->bandarg[i].numraster; j++) {
2455  reuserast = 0;
2456
2457  /* type of union */
2458  utype = iwr->bandarg[i].uniontype;
2459
2460  /* raster flags */
2461  isempty[0] = rt_raster_is_empty(iwr->bandarg[i].raster[j]);
2462  isempty[1] = rt_raster_is_empty(raster);
2463
2464  if (!isempty[0])
2465  hasband[0] = rt_raster_has_band(iwr->bandarg[i].raster[j], 0);
2466  if (!isempty[1])
2467  hasband[1] = rt_raster_has_band(raster, iwr->bandarg[i].nband);
2468
2469  /* determine pixtype, hasnodata and nodataval */
2470  _band = NULL;
2471  if (!isempty[0] && hasband[0])
2472  _band = rt_raster_get_band(iwr->bandarg[i].raster[j], 0);
2473  else if (!isempty[1] && hasband[1])
2474  _band = rt_raster_get_band(raster, iwr->bandarg[i].nband);
2475  else {
2476  pixtype = PT_64BF;
2477  hasnodata = 1;
2478  nodataval = rt_pixtype_get_min_value(pixtype);
2479  }
2480  if (_band != NULL) {
2481  pixtype = rt_band_get_pixtype(_band);
2482  hasnodata = 1;
2483  if (rt_band_get_hasnodata_flag(_band))
2484  rt_band_get_nodata(_band, &nodataval);
2485  else
2486  nodataval = rt_band_get_min_value(_band);
2487  }
2488
2489  /* UT_MEAN and UT_RANGE require two passes */
2490  /* UT_MEAN: first for UT_COUNT and second for UT_SUM */
2491  if (iwr->bandarg[i].uniontype == UT_MEAN) {
2492  /* first pass, UT_COUNT */
2493  if (j < 1)
2494  utype = UT_COUNT;
2495  else
2496  utype = UT_SUM;
2497  }
2498  /* UT_RANGE: first for UT_MIN and second for UT_MAX */
2499  else if (iwr->bandarg[i].uniontype == UT_RANGE) {
2500  /* first pass, UT_MIN */
2501  if (j < 1)
2502  utype = UT_MIN;
2503  else
2504  utype = UT_MAX;
2505  }
2506
2507  /* force band settings for UT_COUNT */
2508  if (utype == UT_COUNT) {
2509  pixtype = PT_32BUI;
2510  hasnodata = 0;
2511  nodataval = 0;
2512  }
2513
2514  POSTGIS_RT_DEBUGF(4, "(pixtype, hasnodata, nodataval) = (%s, %d, %f)", rt_pixtype_name(pixtype), hasnodata, nodataval);
2515
2516  /* set itrset */
2517  itrset[0].raster = iwr->bandarg[i].raster[j];
2518  itrset[0].nband = 0;
2519  itrset[1].raster = raster;
2520  itrset[1].nband = iwr->bandarg[i].nband;
2521
2522  /* allow use NODATA to replace missing bands */
2523  if (nbnodata) {
2524  itrset[0].nbnodata = 1;
2525  itrset[1].nbnodata = 1;
2526  }
2527  /* missing bands are not ignored */
2528  else {
2529  itrset[0].nbnodata = 0;
2530  itrset[1].nbnodata = 0;
2531  }
2532
2533  /* if rasters AND bands are present, use copy approach */
2534  if (!isempty[0] && !isempty[1] && hasband[0] && hasband[1]) {
2535  POSTGIS_RT_DEBUG(3, "using line method");
2536
2537  /* generate empty out raster */
2538  if (rt_raster_from_two_rasters(
2539  iwr->bandarg[i].raster[j], raster,
2540  ET_UNION,
2541  &iraster, _offset
2542  ) != ES_NONE) {
2543
2544  pfree(itrset);
2545  rtpg_union_arg_destroy(iwr);
2546  if (raster != NULL) {
2547  rt_raster_destroy(raster);
2548  PG_FREE_IF_COPY(pgraster, 1);
2549  }
2550
2551  MemoryContextSwitchTo(oldcontext);
2552  elog(ERROR, "RASTER_union_transfn: Could not create internal raster");
2553  PG_RETURN_NULL();
2554  }
2555  POSTGIS_RT_DEBUGF(4, "_offset = %f, %f, %f, %f",
2556  _offset[0], _offset[1], _offset[2], _offset[3]);
2557
2558  /* rasters are spatially the same? */
2559  if (
2560  rt_raster_get_width(iwr->bandarg[i].raster[j]) == rt_raster_get_width(iraster) &&
2561  rt_raster_get_height(iwr->bandarg[i].raster[j]) == rt_raster_get_height(iraster)
2562  ) {
2563  double igt[6] = {0};
2564  double gt[6] = {0};
2565
2566  rt_raster_get_geotransform_matrix(iwr->bandarg[i].raster[j], gt);
2567  rt_raster_get_geotransform_matrix(iraster, igt);
2568
2569  reuserast = rt_util_same_geotransform_matrix(gt, igt);
2570  }
2571
2572  /* use internal raster */
2573  if (!reuserast) {
2574  /* create band of same type */
2575  if (rt_raster_generate_new_band(
2576  iraster,
2577  pixtype,
2578  nodataval,
2579  hasnodata, nodataval,
2580  0
2581  ) == -1) {
2582
2583  pfree(itrset);
2584  rtpg_union_arg_destroy(iwr);
2585  rt_raster_destroy(iraster);
2586  if (raster != NULL) {
2587  rt_raster_destroy(raster);
2588  PG_FREE_IF_COPY(pgraster, 1);
2589  }
2590
2591  MemoryContextSwitchTo(oldcontext);
2592  elog(ERROR, "RASTER_union_transfn: Could not add new band to internal raster");
2593  PG_RETURN_NULL();
2594  }
2595  iband = rt_raster_get_band(iraster, 0);
2596
2597  /* copy working raster to output raster */
2598  _dim[0] = rt_raster_get_width(iwr->bandarg[i].raster[j]);
2599  _dim[1] = rt_raster_get_height(iwr->bandarg[i].raster[j]);
2600  for (y = 0; y < _dim[1]; y++) {
2601  POSTGIS_RT_DEBUGF(4, "Getting pixel line of working raster at (x, y, length) = (0, %d, %d)", y, _dim[0]);
2602  if (rt_band_get_pixel_line(
2603  _band,
2604  0, y,
2605  _dim[0],
2606  &vals, &nvals
2607  ) != ES_NONE) {
2608
2609  pfree(itrset);
2610  rtpg_union_arg_destroy(iwr);
2611  rt_band_destroy(iband);
2612  rt_raster_destroy(iraster);
2613  if (raster != NULL) {
2614  rt_raster_destroy(raster);
2615  PG_FREE_IF_COPY(pgraster, 1);
2616  }
2617
2618  MemoryContextSwitchTo(oldcontext);
2619  elog(ERROR, "RASTER_union_transfn: Could not get pixel line from band of working raster");
2620  PG_RETURN_NULL();
2621  }
2622
2623  POSTGIS_RT_DEBUGF(4, "Setting pixel line at (x, y, length) = (%d, %d, %d)", (int) _offset[0], (int) _offset[1] + y, nvals);
2624  if (rt_band_set_pixel_line(
2625  iband,
2626  (int) _offset[0], (int) _offset[1] + y,
2627  vals, nvals
2628  ) != ES_NONE) {
2629
2630  pfree(itrset);
2631  rtpg_union_arg_destroy(iwr);
2632  rt_band_destroy(iband);
2633  rt_raster_destroy(iraster);
2634  if (raster != NULL) {
2635  rt_raster_destroy(raster);
2636  PG_FREE_IF_COPY(pgraster, 1);
2637  }
2638
2639  MemoryContextSwitchTo(oldcontext);
2640  elog(ERROR, "RASTER_union_transfn: Could not set pixel line to band of internal raster");
2641  PG_RETURN_NULL();
2642  }
2643  }
2644  }
2645  else {
2646  rt_raster_destroy(iraster);
2647  iraster = iwr->bandarg[i].raster[j];
2648  iband = rt_raster_get_band(iraster, 0);
2649  }
2650
2651  /* run iterator for extent of input raster */
2652  noerr = rt_raster_iterator(
2653  itrset, 2,
2654  ET_LAST, NULL,
2655  pixtype,
2656  hasnodata, nodataval,
2657  0, 0,
2658  NULL,
2659  &utype,
2660  rtpg_union_callback,
2661  &_raster
2662  );
2663  if (noerr != ES_NONE) {
2664
2665  pfree(itrset);
2666  rtpg_union_arg_destroy(iwr);
2667  if (!reuserast) {
2668  rt_band_destroy(iband);
2669  rt_raster_destroy(iraster);
2670  }
2671  if (raster != NULL) {
2672  rt_raster_destroy(raster);
2673  PG_FREE_IF_COPY(pgraster, 1);
2674  }
2675
2676  MemoryContextSwitchTo(oldcontext);
2677  elog(ERROR, "RASTER_union_transfn: Could not run raster iterator function");
2678  PG_RETURN_NULL();
2679  }
2680
2681  /* with iterator raster, copy data to output raster */
2682  _band = rt_raster_get_band(_raster, 0);
2683  _dim[0] = rt_raster_get_width(_raster);
2684  _dim[1] = rt_raster_get_height(_raster);
2685  for (y = 0; y < _dim[1]; y++) {
2686  POSTGIS_RT_DEBUGF(4, "Getting pixel line of iterator raster at (x, y, length) = (0, %d, %d)", y, _dim[0]);
2687  if (rt_band_get_pixel_line(
2688  _band,
2689  0, y,
2690  _dim[0],
2691  &vals, &nvals
2692  ) != ES_NONE) {
2693
2694  pfree(itrset);
2695  rtpg_union_arg_destroy(iwr);
2696  if (!reuserast) {
2697  rt_band_destroy(iband);
2698  rt_raster_destroy(iraster);
2699  }
2700  if (raster != NULL) {
2701  rt_raster_destroy(raster);
2702  PG_FREE_IF_COPY(pgraster, 1);
2703  }
2704
2705  MemoryContextSwitchTo(oldcontext);
2706  elog(ERROR, "RASTER_union_transfn: Could not get pixel line from band of working raster");
2707  PG_RETURN_NULL();
2708  }
2709
2710  POSTGIS_RT_DEBUGF(4, "Setting pixel line at (x, y, length) = (%d, %d, %d)", (int) _offset[2], (int) _offset[3] + y, nvals);
2711  if (rt_band_set_pixel_line(
2712  iband,
2713  (int) _offset[2], (int) _offset[3] + y,
2714  vals, nvals
2715  ) != ES_NONE) {
2716
2717  pfree(itrset);
2718  rtpg_union_arg_destroy(iwr);
2719  if (!reuserast) {
2720  rt_band_destroy(iband);
2721  rt_raster_destroy(iraster);
2722  }
2723  if (raster != NULL) {
2724  rt_raster_destroy(raster);
2725  PG_FREE_IF_COPY(pgraster, 1);
2726  }
2727
2728  MemoryContextSwitchTo(oldcontext);
2729  elog(ERROR, "RASTER_union_transfn: Could not set pixel line to band of internal raster");
2730  PG_RETURN_NULL();
2731  }
2732  }
2733
2734  /* free _raster */
2735  rt_band_destroy(_band);
2736  rt_raster_destroy(_raster);
2737
2738  /* replace working raster with output raster */
2739  _raster = iraster;
2740  }
2741  else {
2742  POSTGIS_RT_DEBUG(3, "using pixel method");
2743
2744  /* pass everything to iterator */
2745  noerr = rt_raster_iterator(
2746  itrset, 2,
2747  ET_UNION, NULL,
2748  pixtype,
2749  hasnodata, nodataval,
2750  0, 0,
2751  NULL,
2752  &utype,
2753  rtpg_union_callback,
2754  &_raster
2755  );
2756
2757  if (noerr != ES_NONE) {
2758
2759  pfree(itrset);
2760  rtpg_union_arg_destroy(iwr);
2761  if (raster != NULL) {
2762  rt_raster_destroy(raster);
2763  PG_FREE_IF_COPY(pgraster, 1);
2764  }
2765
2766  MemoryContextSwitchTo(oldcontext);
2767  elog(ERROR, "RASTER_union_transfn: Could not run raster iterator function");
2768  PG_RETURN_NULL();
2769  }
2770  }
2771
2772  /* replace working raster */
2773  if (iwr->bandarg[i].raster[j] != NULL && !reuserast) {
2774  for (k = rt_raster_get_num_bands(iwr->bandarg[i].raster[j]) - 1; k >= 0; k--)
2775  rt_band_destroy(rt_raster_get_band(iwr->bandarg[i].raster[j], k));
2776  rt_raster_destroy(iwr->bandarg[i].raster[j]);
2777  }
2778  iwr->bandarg[i].raster[j] = _raster;
2779  }
2780
2781  }
2782
2783  pfree(itrset);
2784  if (raster != NULL) {
2785  rt_raster_destroy(raster);
2786  PG_FREE_IF_COPY(pgraster, 1);
2787  }
2788
2789  /* switch back to local context */
2790  MemoryContextSwitchTo(oldcontext);
2791
2792  POSTGIS_RT_DEBUG(3, "Finished");
2793
2794  PG_RETURN_POINTER(iwr);
2795 }
FALSE
#define FALSE
Definition: dbfopen.c:168
rt_raster_generate_new_band
int rt_raster_generate_new_band(rt_raster raster, rt_pixtype pixtype, double initialvalue, uint32_t hasnodata, double nodatavalue, int index)
Generate a new inline band and add it to a raster.
Definition: rt_raster.c:485
rt_band_get_hasnodata_flag
int rt_band_get_hasnodata_flag(rt_band band)
Get hasnodata flag value.
Definition: rt_band.c:674
rt_raster_destroy
void rt_raster_destroy(rt_raster raster)
Release memory associated to a raster.
Definition: rt_raster.c:82
rt_pixtype
rt_pixtype
Definition: librtcore.h:185
PT_32BUI
@ PT_32BUI
Definition: librtcore.h:194
PT_END
@ PT_END
Definition: librtcore.h:197
PT_64BF
@ PT_64BF
Definition: librtcore.h:196
rt_pixtype_get_min_value
double rt_pixtype_get_min_value(rt_pixtype pixtype)
Return minimum value possible for pixel type.
Definition: rt_pixel.c:148
rt_raster_has_band
int rt_raster_has_band(rt_raster raster, int nband)
Return TRUE if the raster has a band of this number.
Definition: rt_raster.c:1342
rt_band_get_min_value
double rt_band_get_min_value(rt_band band)
Returns the minimal possible value for the band according to the pixel type.
Definition: rt_band.c:1745
ES_NONE
@ ES_NONE
Definition: librtcore.h:180
rt_band_set_pixel_line
rt_errorstate rt_band_set_pixel_line(rt_band band, int x, int y, void *vals, uint32_t len)
Set values of multiple pixels.
Definition: rt_band.c:853
rt_band_destroy
void rt_band_destroy(rt_band band)
Destroy a raster band.
Definition: rt_band.c:340
rt_raster_get_num_bands
uint16_t rt_raster_get_num_bands(rt_raster raster)
Definition: rt_raster.c:372
rt_raster_clone
rt_raster rt_raster_clone(rt_raster raster, uint8_t deep)
Clone an existing raster.
Definition: rt_raster.c:1535
rt_raster_get_height
uint16_t rt_raster_get_height(rt_raster raster)
Definition: rt_raster.c:129
rt_raster_iterator
rt_errorstate rt_raster_iterator(rt_iterator itrset, uint16_t itrcount, rt_extenttype extenttype, rt_raster customextent, rt_pixtype pixtype, uint8_t hasnodata, double nodataval, uint16_t distancex, uint16_t distancey, rt_mask mask, void *userarg, int(*callback)(rt_iterator_arg arg, void *userarg, double *value, int *nodata), rt_raster *rtnraster)
n-raster iterator.
Definition: rt_mapalgebra.c:812
ET_LAST
@ ET_LAST
Definition: librtcore.h:205
ET_UNION
@ ET_UNION
Definition: librtcore.h:202
rt_band_get_nodata
rt_errorstate rt_band_get_nodata(rt_band band, double *nodata)
Get NODATA value.
Definition: rt_band.c:1730
rt_band_get_pixtype
rt_pixtype rt_band_get_pixtype(rt_band band)
Return pixeltype of this band.
Definition: rt_band.c:631
rt_pixtype_name
const char * rt_pixtype_name(rt_pixtype pixtype)
Definition: rt_pixel.c:110
rt_raster_get_width
uint16_t rt_raster_get_width(rt_raster raster)
Definition: rt_raster.c:121
rt_raster_from_two_rasters
rt_errorstate rt_raster_from_two_rasters(rt_raster rast1, rt_raster rast2, rt_extenttype extenttype, rt_raster *rtnraster, double *offset)
Definition: rt_raster.c:3350
rt_util_same_geotransform_matrix
int rt_util_same_geotransform_matrix(double *gt1, double *gt2)
Definition: rt_util.c:491
rt_raster_get_geotransform_matrix
void rt_raster_get_geotransform_matrix(rt_raster raster, double *gt)
Get 6-element array of raster geotransform matrix.
Definition: rt_raster.c:706
rt_raster_deserialize
rt_raster rt_raster_deserialize(void *serialized, int header_only)
Return a raster from a serialized form.
Definition: rt_serialize.c:725
rt_band_get_pixel_line
rt_errorstate rt_band_get_pixel_line(rt_band band, int x, int y, uint16_t len, void **vals, uint16_t *nvals)
Get values of multiple pixels.
Definition: rt_band.c:1137
rt_raster_is_empty
int rt_raster_is_empty(rt_raster raster)
Return TRUE if the raster is empty.
Definition: rt_raster.c:1329
rt_raster_get_band
rt_band rt_raster_get_band(rt_raster raster, int bandNum)
Return Nth band, or NULL if unavailable.
Definition: rt_raster.c:381
pixval.nband
nband
Definition: pixval.py:53
rtrowdump.raster
raster
Be careful!! Zeros function's input parameter can be a (height x width) array, not (width x height): ...
Definition: rtrowdump.py:121
window.gt
gt
Definition: window.py:78
text_to_cstring
char * text_to_cstring(const text *textptr)
rtpg_strtoupper
char * rtpg_strtoupper(char *str)
Definition: rtpg_internal.c:100
rtpg_uniontype_index_from_name
static rtpg_union_type rtpg_uniontype_index_from_name(const char *cutype)
Definition: rtpg_mapalgebra.c:1728
rtpg_union_arg_destroy
static void rtpg_union_arg_destroy(rtpg_union_arg arg)
Definition: rtpg_mapalgebra.c:1766
rtpg_union_arg
struct rtpg_union_arg_t * rtpg_union_arg
Definition: rtpg_mapalgebra.c:1760
rtpg_union_unionarg_process
static int rtpg_union_unionarg_process(rtpg_union_arg arg, ArrayType *array)
Definition: rtpg_mapalgebra.c:1954
rtpg_union_callback
static int rtpg_union_callback(rt_iterator_arg arg, void *userarg, double *value, int *nodata)
Definition: rtpg_mapalgebra.c:1794
rtpg_union_type
rtpg_union_type
Definition: rtpg_mapalgebra.c:1716
UT_MIN
@ UT_MIN
Definition: rtpg_mapalgebra.c:1719
UT_MEAN
@ UT_MEAN
Definition: rtpg_mapalgebra.c:1723
UT_COUNT
@ UT_COUNT
Definition: rtpg_mapalgebra.c:1721
UT_LAST
@ UT_LAST
Definition: rtpg_mapalgebra.c:1717
UT_SUM
@ UT_SUM
Definition: rtpg_mapalgebra.c:1722
UT_MAX
@ UT_MAX
Definition: rtpg_mapalgebra.c:1720
UT_RANGE
@ UT_RANGE
Definition: rtpg_mapalgebra.c:1724
rtpg_union_noarg
static int rtpg_union_noarg(rtpg_union_arg arg, rt_raster raster)
Definition: rtpg_mapalgebra.c:2062
POSTGIS_RT_DEBUG
#define POSTGIS_RT_DEBUG(level, msg)
Definition: rtpostgis.h:61
POSTGIS_RT_DEBUGF
#define POSTGIS_RT_DEBUGF(level, msg,...)
Definition: rtpostgis.h:65
rt_band_t
Definition: librtcore.h:2314
rt_iterator_t::raster
rt_raster raster
Definition: librtcore.h:2444
rt_iterator_t::nband
uint16_t nband
Definition: librtcore.h:2445
rt_iterator_t::nbnodata
uint8_t nbnodata
Definition: librtcore.h:2446
rt_iterator_t
Definition: librtcore.h:2443
rt_raster_serialized_t
Struct definitions.
Definition: librtcore.h:2251
rt_raster_t
Definition: librtcore.h:2285
rtpg_union_arg_t::numband
int numband
Definition: rtpg_mapalgebra.c:1762
rtpg_union_arg_t::bandarg
rtpg_union_band_arg bandarg
Definition: rtpg_mapalgebra.c:1763
rtpg_union_arg_t
Definition: rtpg_mapalgebra.c:1761
rtpg_union_band_arg_t::numraster
int numraster
Definition: rtpg_mapalgebra.c:1756
rtpg_union_band_arg_t::raster
rt_raster * raster
Definition: rtpg_mapalgebra.c:1757
rtpg_union_band_arg_t::nband
int nband
Definition: rtpg_mapalgebra.c:1753
rtpg_union_band_arg_t::uniontype
rtpg_union_type uniontype
Definition: rtpg_mapalgebra.c:1754
rtpg_union_band_arg_t
Definition: rtpg_mapalgebra.c:1752

References rtpg_union_arg_t::bandarg, ES_NONE, ET_LAST, ET_UNION, FALSE, window::gt, rt_iterator_t::nband, rtpg_union_band_arg_t::nband, pixval::nband, rt_iterator_t::nbnodata, rtpg_union_arg_t::numband, rtpg_union_band_arg_t::numraster, POSTGIS_RT_DEBUG, POSTGIS_RT_DEBUGF, PT_32BUI, PT_64BF, PT_END, rt_iterator_t::raster, rtpg_union_band_arg_t::raster, rtrowdump::raster, rt_band_destroy(), rt_band_get_hasnodata_flag(), rt_band_get_min_value(), rt_band_get_nodata(), rt_band_get_pixel_line(), rt_band_get_pixtype(), rt_band_set_pixel_line(), rt_pixtype_get_min_value(), rt_pixtype_name(), rt_raster_clone(), rt_raster_deserialize(), rt_raster_destroy(), rt_raster_from_two_rasters(), rt_raster_generate_new_band(), rt_raster_get_band(), rt_raster_get_geotransform_matrix(), rt_raster_get_height(), rt_raster_get_num_bands(), rt_raster_get_width(), rt_raster_has_band(), rt_raster_is_empty(), rt_raster_iterator(), rt_util_same_geotransform_matrix(), rtpg_strtoupper(), rtpg_union_arg_destroy(), rtpg_union_callback(), rtpg_union_noarg(), rtpg_union_unionarg_process(), rtpg_uniontype_index_from_name(), text_to_cstring(), rtpg_union_band_arg_t::uniontype, UT_COUNT, UT_LAST, UT_MAX, UT_MEAN, UT_MIN, UT_RANGE, UT_SUM, and pixval::y.

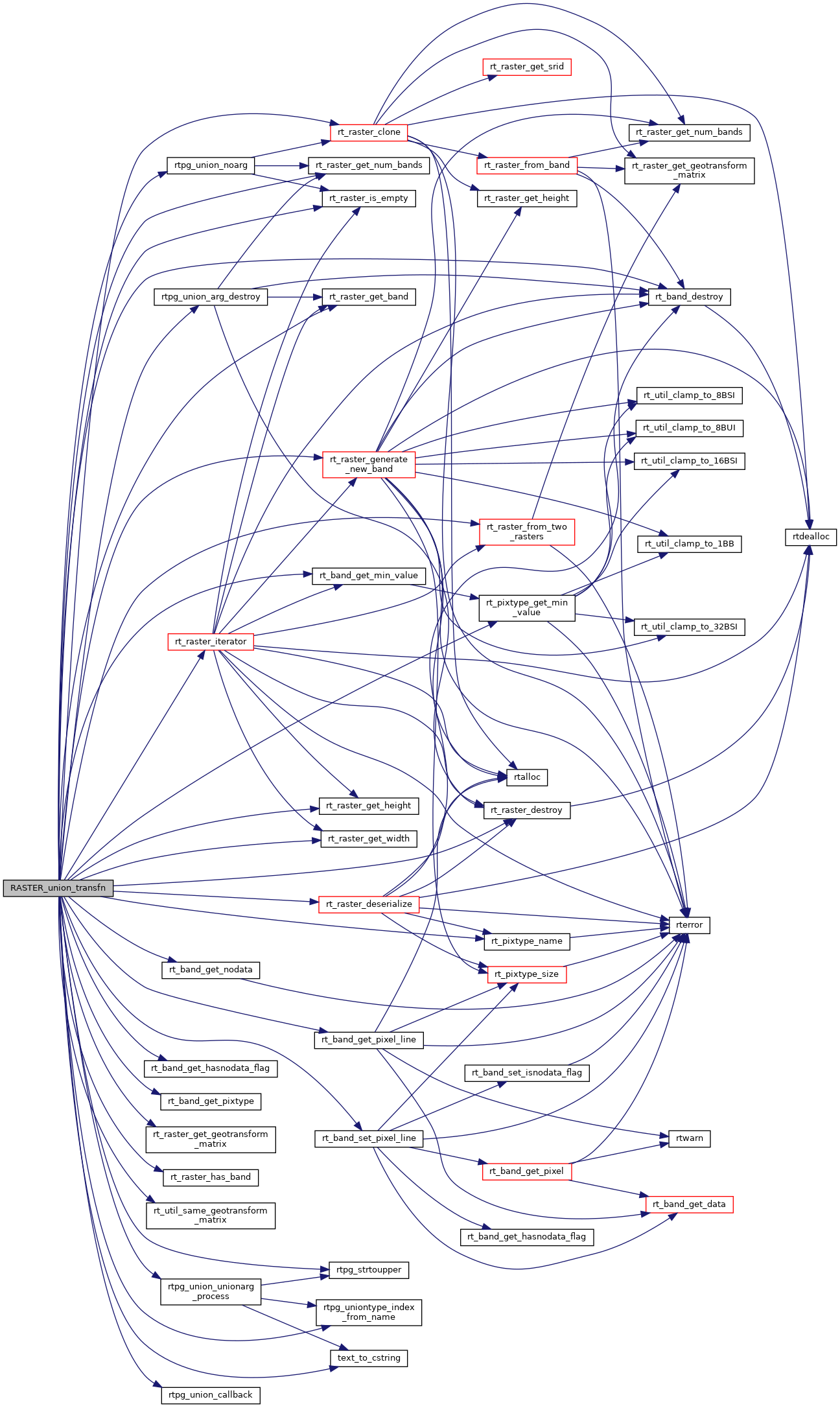

Here is the call graph for this function:
