PostGIS  3.0.6dev-r@@SVN_REVISION@@

◆ test_isclosed()

static void test_isclosed ( void  )
static

Definition at line 1016 of file cu_algorithm.c.

1017 {
1018  LWGEOM *geom;
1019
1020  /* LINESTRING */
1021
1022  /* Not Closed on 2D */
1023  geom = lwgeom_from_wkt("LINESTRING(1 2,3 4)", LW_PARSER_CHECK_NONE);
1024  CU_ASSERT(!lwline_is_closed((LWLINE *) geom));
1025  lwgeom_free(geom);
1026
1027  /* Closed on 2D */
1028  geom = lwgeom_from_wkt("LINESTRING(1 2,3 4,1 2)", LW_PARSER_CHECK_NONE);
1029  CU_ASSERT(lwline_is_closed((LWLINE *) geom));
1030  lwgeom_free(geom);
1031
1032  /* Not closed on 3D */
1033  geom = lwgeom_from_wkt("LINESTRING(1 2 3,4 5 6)", LW_PARSER_CHECK_NONE);
1034  CU_ASSERT(!lwline_is_closed((LWLINE *) geom));
1035  lwgeom_free(geom);
1036
1037  /* Closed on 3D */
1038  geom = lwgeom_from_wkt("LINESTRING(1 2 3,4 5 6,1 2 3)", LW_PARSER_CHECK_NONE);
1039  CU_ASSERT(lwline_is_closed((LWLINE *) geom));
1040  lwgeom_free(geom);
1041
1042  /* Closed on 4D, even if M is not the same */
1043  geom = lwgeom_from_wkt("LINESTRING(1 2 3 4,5 6 7 8,1 2 3 0)", LW_PARSER_CHECK_NONE);
1044  CU_ASSERT(lwline_is_closed((LWLINE *) geom));
1045  lwgeom_free(geom);
1046
1047
1048  /* CIRCULARSTRING */
1049
1050  /* Not Closed on 2D */
1051  geom = lwgeom_from_wkt("CIRCULARSTRING(1 2,3 4,5 6)", LW_PARSER_CHECK_NONE);
1052  CU_ASSERT(!lwcircstring_is_closed((LWCIRCSTRING *) geom));
1053  lwgeom_free(geom);
1054
1055  /* Closed on 2D */
1056  geom = lwgeom_from_wkt("CIRCULARSTRING(1 2,3 4,1 2)", LW_PARSER_CHECK_NONE);
1057  CU_ASSERT(lwcircstring_is_closed((LWCIRCSTRING *) geom));
1058  lwgeom_free(geom);
1059
1060  /* Not closed on 3D */
1061  geom = lwgeom_from_wkt("CIRCULARSTRING(1 2 3,4 5 6,7 8 9)", LW_PARSER_CHECK_NONE);
1062  CU_ASSERT(!lwcircstring_is_closed((LWCIRCSTRING *) geom));
1063  lwgeom_free(geom);
1064
1065  /* Closed on 3D */
1066  geom = lwgeom_from_wkt("CIRCULARSTRING(1 2 3,4 5 6,1 2 3)", LW_PARSER_CHECK_NONE);
1067  CU_ASSERT(lwcircstring_is_closed((LWCIRCSTRING *) geom));
1068  lwgeom_free(geom);
1069
1070  /* Closed on 4D, even if M is not the same */
1071  geom = lwgeom_from_wkt("CIRCULARSTRING(1 2 3 4,5 6 7 8,1 2 3 0)", LW_PARSER_CHECK_NONE);
1072  CU_ASSERT(lwcircstring_is_closed((LWCIRCSTRING *) geom));
1073  lwgeom_free(geom);
1074
1075
1076  /* COMPOUNDCURVE */
1077
1078  /* Not Closed on 2D */
1079  geom = lwgeom_from_wkt("COMPOUNDCURVE(CIRCULARSTRING(1 2,3 4,1 2),(1 2,7 8,5 6))", LW_PARSER_CHECK_NONE);
1080  CU_ASSERT(!lwcompound_is_closed((LWCOMPOUND *) geom));
1081  lwgeom_free(geom);
1082
1083  geom = lwgeom_from_wkt("COMPOUNDCURVE((1 2,3 4,1 2),CIRCULARSTRING(1 2,7 8,5 6))", LW_PARSER_CHECK_NONE);
1084  CU_ASSERT(!lwcompound_is_closed((LWCOMPOUND *) geom));
1085  lwgeom_free(geom);
1086
1087  /* Closed on 2D */
1088  geom = lwgeom_from_wkt("COMPOUNDCURVE(CIRCULARSTRING(1 2,3 4,5 6), (5 6,7 8,1 2))", LW_PARSER_CHECK_NONE);
1089  CU_ASSERT(lwcompound_is_closed((LWCOMPOUND *) geom));
1090  lwgeom_free(geom);
1091
1092  geom = lwgeom_from_wkt("COMPOUNDCURVE((1 2,3 4,5 6),CIRCULARSTRING(5 6,7 8,1 2))", LW_PARSER_CHECK_NONE);
1093  CU_ASSERT(lwcompound_is_closed((LWCOMPOUND *) geom));
1094  lwgeom_free(geom);
1095
1096  /* Not Closed on 3D */
1097  geom = lwgeom_from_wkt("COMPOUNDCURVE(CIRCULARSTRING(1 2 3,4 5 6,1 2 3),(1 2 3,7 8 9,10 11 12))", LW_PARSER_CHECK_NONE);
1098  CU_ASSERT(!lwcompound_is_closed((LWCOMPOUND *) geom));
1099  lwgeom_free(geom);
1100
1101  geom = lwgeom_from_wkt("COMPOUNDCURVE((1 2 3,4 5 6,1 2 3),CIRCULARSTRING(1 2 3,7 8 9,10 11 12))", LW_PARSER_CHECK_NONE);
1102  CU_ASSERT(!lwcompound_is_closed((LWCOMPOUND *) geom));
1103  lwgeom_free(geom);
1104
1105  /* Closed on 3D */
1106  geom = lwgeom_from_wkt("COMPOUNDCURVE(CIRCULARSTRING(1 2 3,4 5 6,7 8 9),(7 8 9,10 11 12,1 2 3))", LW_PARSER_CHECK_NONE);
1107  CU_ASSERT(lwcompound_is_closed((LWCOMPOUND *) geom));
1108  lwgeom_free(geom);
1109
1110  geom = lwgeom_from_wkt("COMPOUNDCURVE((1 2 3,4 5 6,7 8 9),CIRCULARSTRING(7 8 9,10 11 12,1 2 3))", LW_PARSER_CHECK_NONE);
1111  CU_ASSERT(lwcompound_is_closed((LWCOMPOUND *) geom));
1112  lwgeom_free(geom);
1113
1114  /* Closed on 4D, even if M is not the same */
1115  geom = lwgeom_from_wkt("COMPOUNDCURVE((1 2 3 4,5 6 7 8,9 10 11 12),CIRCULARSTRING(9 10 11 12,13 14 15 16,1 2 3 0))", LW_PARSER_CHECK_NONE);
1116  CU_ASSERT(lwcompound_is_closed((LWCOMPOUND *) geom));
1117  lwgeom_free(geom);
1118 }
lwgeom_free
void lwgeom_free(LWGEOM *geom)
Definition: lwgeom.c:1138
LW_PARSER_CHECK_NONE
#define LW_PARSER_CHECK_NONE
Definition: liblwgeom.h:2060
lwgeom_from_wkt
LWGEOM * lwgeom_from_wkt(const char *wkt, const char check)
Definition: lwin_wkt.c:905
lwcircstring_is_closed
int lwcircstring_is_closed(const LWCIRCSTRING *curve)
Definition: lwcircstring.c:261
lwline_is_closed
int lwline_is_closed(const LWLINE *line)
Definition: lwline.c:445
lwcompound_is_closed
int lwcompound_is_closed(const LWCOMPOUND *curve)
Definition: lwcompound.c:35

References LW_PARSER_CHECK_NONE, lwcircstring_is_closed(), lwcompound_is_closed(), lwgeom_free(), lwgeom_from_wkt(), and lwline_is_closed().

Referenced by algorithms_suite_setup().

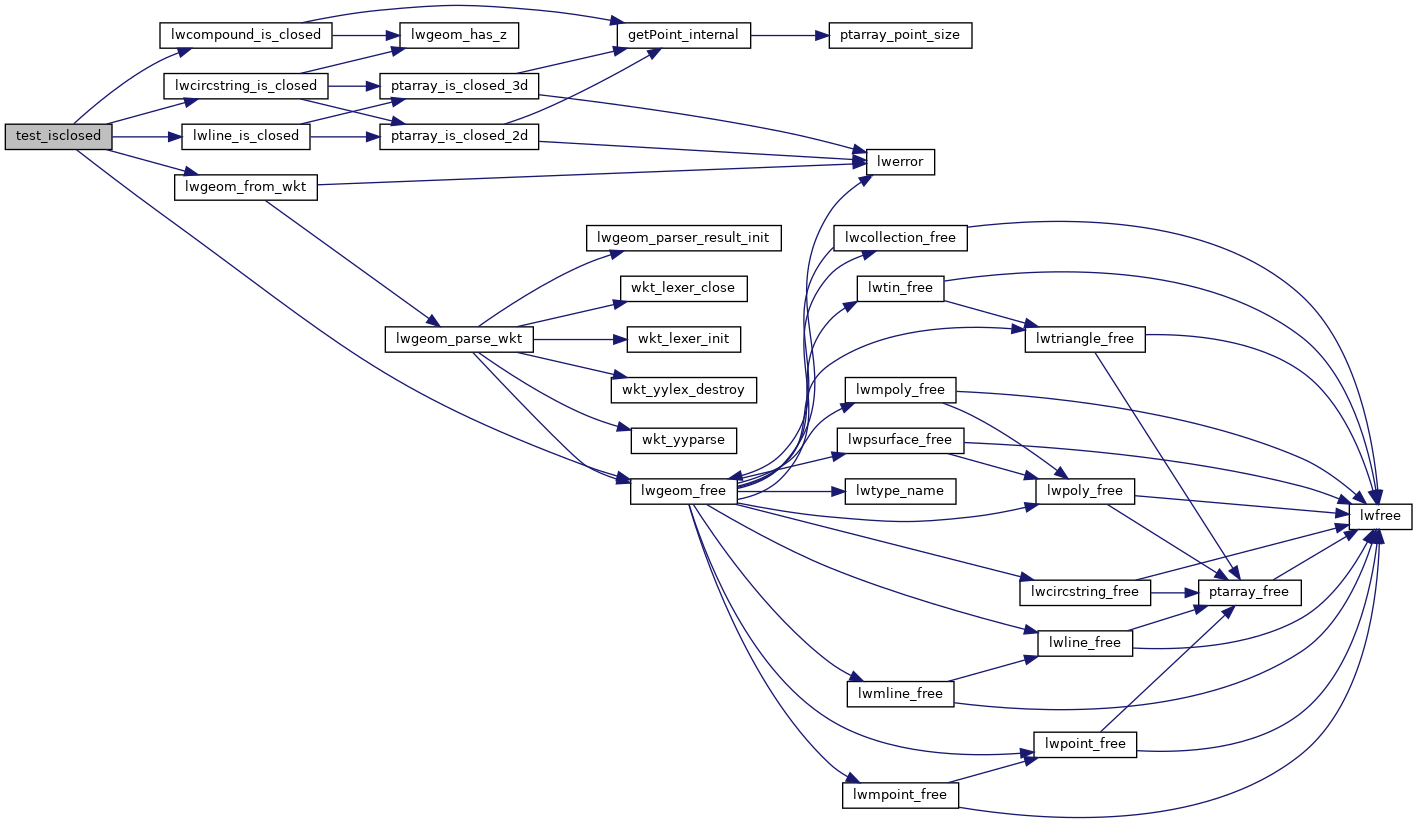

Here is the call graph for this function:
Here is the caller graph for this function:
