◆ test_lw_dist2d_arc_arc()

static void test_lw_dist2d_arc_arc ( void  )
static

Definition at line 887 of file cu_measures.c.

888 {
889  /* lw_dist2d_arc_arc(const POINT2D *A1, const POINT2D *A2, const POINT2D *A3,
890  const POINT2D *B1, const POINT2D *B2, const POINT2D *B3,
891  DISTPTS *dl) */
892  DISTPTS dl;
893  POINT2D A1, A2, A3, B1, B2, B3;
894  int rv;
895
896  /* Ticket #4326 */
897  lw_dist2d_distpts_init(&dl, DIST_MIN);
898  A1.x = -1.0; A1.y = 4.0;
899  A2.x = 0.0; A2.y = 5.0;
900  A3.x = 1.0; A3.y = 4.0;
901  B1.x = 1.0; B1.y = 6.0;
902  B2.x = 6.0; B2.y = 1.0;
903  B3.x = 9.0; B3.y = 7.0;
904  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
905  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
906  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 0.0475666, 0.000001);
907
908  /* Unit semicircle at 0,0 */
909  B1.x = -1; B1.y = 0;
910  B2.x = 0 ; B2.y = 1;
911  B3.x = 1 ; B3.y = 0;
912
913  /* Arc above the unit semicircle */
914  lw_dist2d_distpts_init(&dl, DIST_MIN);
915  A1.x = -1; A1.y = 3;
916  A2.x = 0 ; A2.y = 2;
917  A3.x = 1 ; A3.y = 3;
918  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
919  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
920  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1, 0.000001);
921
922  /* Arc grazes the unit semicircle */
923  lw_dist2d_distpts_init(&dl, DIST_MIN);
924  A1.x = -1; A1.y = 2;
925  A2.x = 0 ; A2.y = 1;
926  A3.x = 1 ; A3.y = 2;
927  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
928  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
929  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 0, 0.000001);
930
931  /* Circles intersect, but arcs do not */
932  lw_dist2d_distpts_init(&dl, DIST_MIN);
933  A1.x = -1; A1.y = 1;
934  A2.x = 0; A2.y = 2;
935  A3.x = 1; A3.y = 1;
936  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
937  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
938  CU_ASSERT_DOUBLE_EQUAL(dl.distance, sqrt(2)-1, 0.000001);
939
940  /* Circles and arcs intersect */
941  lw_dist2d_distpts_init(&dl, DIST_MIN);
942  A1.x = -1; A1.y = 1;
943  A2.x = 0; A2.y = 0;
944  A3.x = 1; A3.y = 1;
945  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
946  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
947  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 0, 0.000001);
948
949  /* Concentric: and fully parallel */
950  lw_dist2d_distpts_init(&dl, DIST_MIN);
951  A1.x = -2.0; A1.y = 0.0;
952  A2.x = 0.0; A2.y = 2.0;
953  A3.x = 2.0; A3.y = 0.0;
954  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
955  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
956  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1.0, 0.000001);
957
958  /* Concentric: with A fully included in B's range */
959  lw_dist2d_distpts_init(&dl, DIST_MIN);
960  A1.x = -0.5 / sqrt(2.0); A1.y = 0.5 / sqrt(2.0);
961  A2.x = 0.0; A2.y = 0.5;
962  A3.x = 0.5 / sqrt(2.0); A3.y = 0.5 / sqrt(2.0);
963  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
964  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
965  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 0.5, 0.000001);
966
967  /* Concentric: with A partially included in B's range */
968  lw_dist2d_distpts_init(&dl, DIST_MIN);
969  A1.x = -0.5 / sqrt(2.0); A1.y = -0.5 / sqrt(2.0);
970  A2.x = -0.5; A2.y = 0.0;
971  A3.x = -0.5 / sqrt(2.0); A3.y = 0.5 / sqrt(2.0);
972  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
973  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
974  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 0.5, 0.000001);
975
976  /* Concentric: with A and B without parallel segments */
977  lw_dist2d_distpts_init(&dl, DIST_MIN);
978  A1.x = -0.5 / sqrt(2.0); A1.y = -0.5 / sqrt(2.0);
979  A2.x = 0.0; A2.y = -0.5;
980  A3.x = 0.5 / sqrt(2.0); A3.y = -0.5 / sqrt(2.0);
981  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
982  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
983  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 0.736813, 0.000001);
984
985  /* Concentric: Arcs are the same */
986  lw_dist2d_distpts_init(&dl, DIST_MIN);
987  A1.x = -1.0; A1.y = 0.0;
988  A2.x = 0.0; A2.y = 1.0;
989  A3.x = 1.0; A3.y = 0.0;
990  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
991  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
992  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 0.0, 0.000001);
993
994  /* Check different orientations */
995  B1.x = -10.0; B1.y = 0.0;
996  B2.x = 0.0 ; B2.y = 10.0;
997  B3.x = 10.0 ; B3.y = 0.0;
998
999  lw_dist2d_distpts_init(&dl, DIST_MIN);
1000  A1.x = -22.0; A1.y = 0.0;
1001  A2.x = -17.0; A2.y = -5.0;
1002  A3.x = -12.0; A3.y = 0.0;
1003  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1004  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1005  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 2.0, 0.000001);
1006
1007  lw_dist2d_distpts_init(&dl, DIST_MIN);
1008  A1.x = -19.0; A1.y = 0.0;
1009  A2.x = -14.0; A2.y = -5.0;
1010  A3.x = - 9.0; A3.y = 0.0;
1011  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1012  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1013  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1.0, 0.000001);
1014
1015  lw_dist2d_distpts_init(&dl, DIST_MIN);
1016  A1.x = -9.0; A1.y = 0.0;
1017  A2.x = -4.0; A2.y = -5.0;
1018  A3.x = 1.0; A3.y = 0.0;
1019  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1020  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1021  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1.0, 0.000001);
1022
1023  lw_dist2d_distpts_init(&dl, DIST_MIN);
1024  A1.x = -1.0; A1.y = 0.0;
1025  A2.x = 4.0; A2.y = -5.0;
1026  A3.x = 9.0; A3.y = 0.0;
1027  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1028  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1029  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1.0, 0.000001);
1030
1031  lw_dist2d_distpts_init(&dl, DIST_MIN);
1032  A1.x = 1.0; A1.y = 0.0;
1033  A2.x = 6.0; A2.y = -5.0;
1034  A3.x = 11.0; A3.y = 0.0;
1035  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1036  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1037  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1.0, 0.000001);
1038
1039  lw_dist2d_distpts_init(&dl, DIST_MIN);
1040  A1.x = 11.0; A1.y = 0.0;
1041  A2.x = 16.0; A2.y = -5.0;
1042  A3.x = 21.0; A3.y = 0.0;
1043  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1044  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1045  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1.0, 0.000001);
1046
1047
1048  lw_dist2d_distpts_init(&dl, DIST_MIN);
1049  A1.x = -15.0; A1.y = -6.0;
1050  A2.x = -10.0; A2.y = -1.0;
1051  A3.x = - 5.0; A3.y = -6.0;
1052  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1053  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1054  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 1.0, 0.000001);
1055
1056  lw_dist2d_distpts_init(&dl, DIST_MIN);
1057  A1.x = -5.0; A1.y = 0.0;
1058  A2.x = 0.0; A2.y = 5.0;
1059  A3.x = 5.0; A3.y = 0.0;
1060  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1061  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1062  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 5.0, 0.000001);
1063
1064  lw_dist2d_distpts_init(&dl, DIST_MIN);
1065  A1.x = -5.0; A1.y = 0.0;
1066  A2.x = 0.0; A2.y = -5.0;
1067  A3.x = 5.0; A3.y = 0.0;
1068  rv = lw_dist2d_arc_arc(&A1, &A2, &A3, &B1, &B2, &B3, &dl);
1069  CU_ASSERT_EQUAL( rv, LW_SUCCESS );
1070  CU_ASSERT_DOUBLE_EQUAL(dl.distance, 5.0, 0.000001);
1071
1072 }
LW_SUCCESS
#define LW_SUCCESS
Definition: liblwgeom.h:111
lw_dist2d_distpts_init
void lw_dist2d_distpts_init(DISTPTS *dl, int mode)
Definition: measures.c:64
lw_dist2d_arc_arc
int lw_dist2d_arc_arc(const POINT2D *A1, const POINT2D *A2, const POINT2D *A3, const POINT2D *B1, const POINT2D *B2, const POINT2D *B3, DISTPTS *dl)
Definition: measures.c:1575
DIST_MIN
#define DIST_MIN
Definition: measures.h:44
DISTPTS::distance
double distance
Definition: measures.h:51
DISTPTS
Structure used in distance-calculations.
Definition: measures.h:50
POINT2D::y
double y
Definition: liblwgeom.h:376
POINT2D::x
double x
Definition: liblwgeom.h:376

References DIST_MIN, DISTPTS::distance, lw_dist2d_arc_arc(), lw_dist2d_distpts_init(), LW_SUCCESS, POINT2D::x, and POINT2D::y.

Referenced by measures_suite_setup().

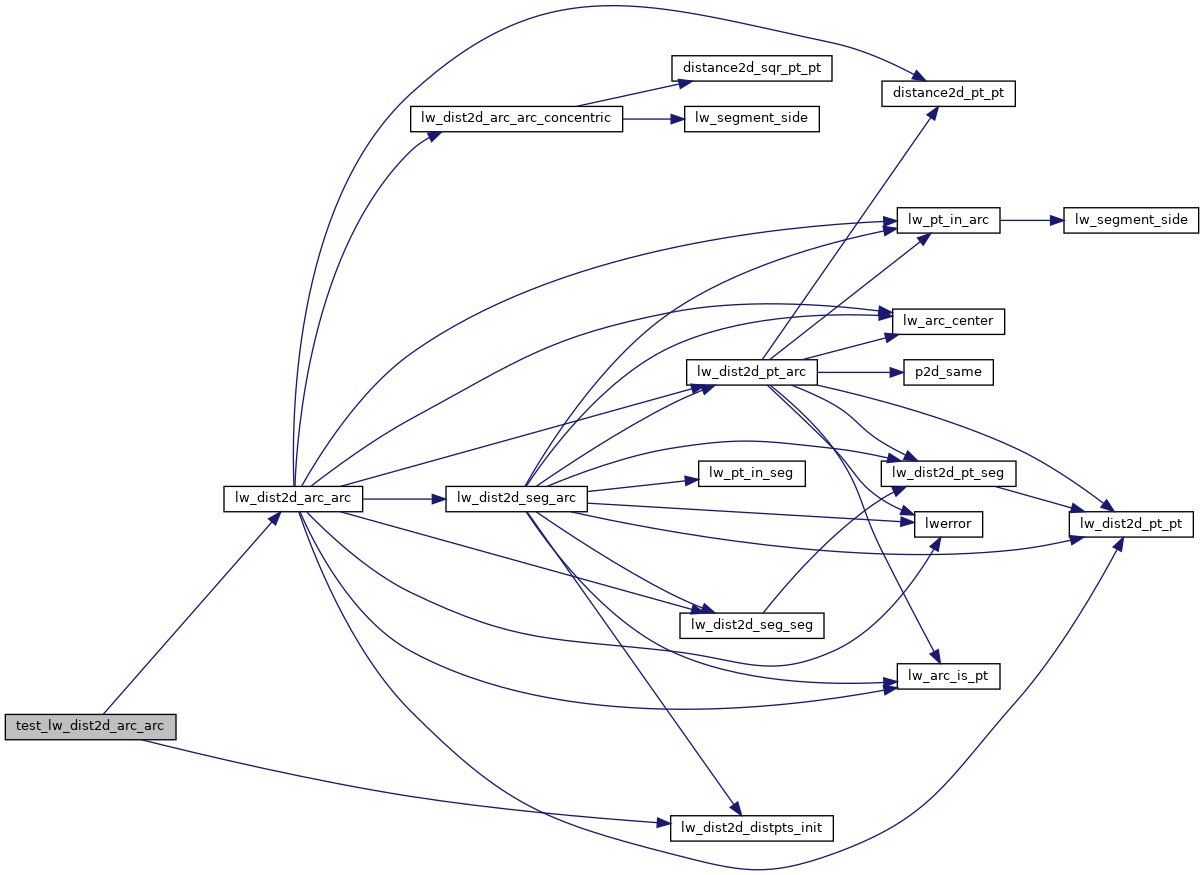

Here is the call graph for this function:
Here is the caller graph for this function:
