9. 几何（Geometries）¶
9.1. 介绍¶
在 前一节，我们加载了一些数据。在操作数据之前，我们先看一些更简单的例子。在 pgAdmin 中，再次选中 nyc 数据库，打开 SQL 查询工具。粘贴下列的 SQL 代码到 SQL 编辑窗口（有默认的文本的话覆盖掉）然后执行。
CREATE TABLE geometries (name varchar, geom geometry);
INSERT INTO geometries VALUES
('Point', 'POINT(0 0)'),
('Linestring', 'LINESTRING(0 0, 1 1, 2 1, 2 2)'),
('Polygon', 'POLYGON((0 0, 1 0, 1 1, 0 1, 0 0))'),
('PolygonWithHole', 'POLYGON((0 0, 10 0, 10 10, 0 10, 0 0),(1 1, 1 2, 2 2, 2 1, 1 1))'),
('Collection', 'GEOMETRYCOLLECTION(POINT(2 0),POLYGON((0 0, 1 0, 1 1, 0 1, 0 0)))');

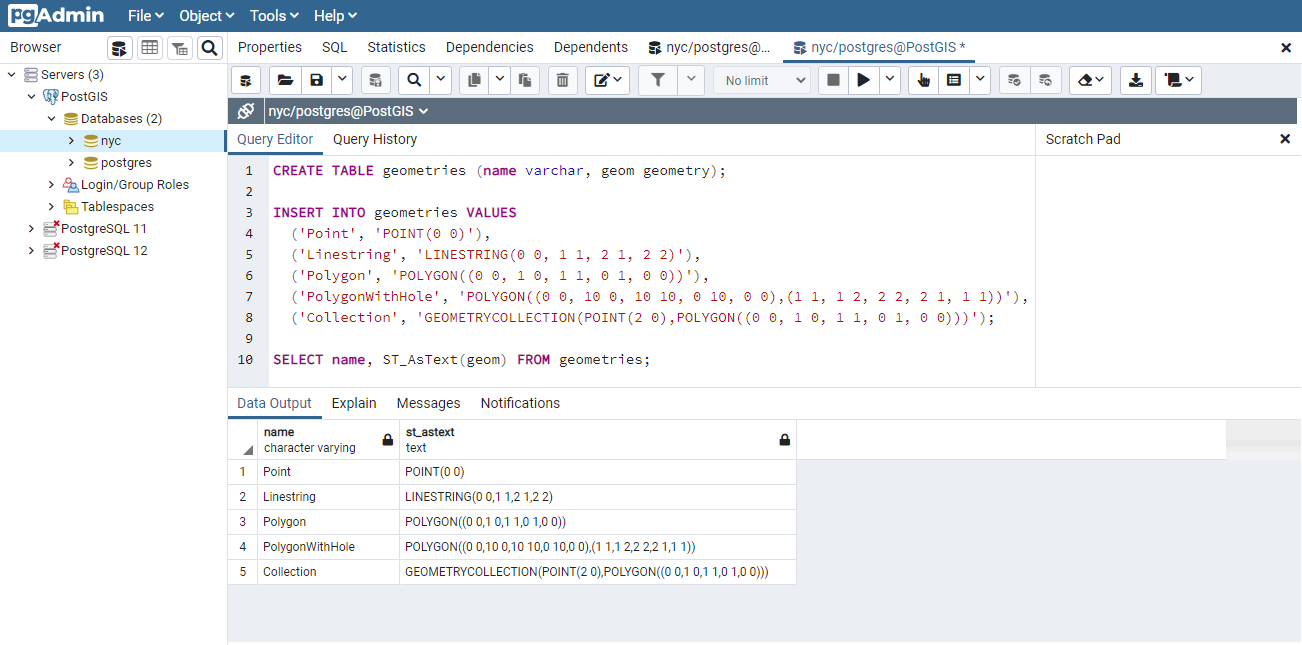

SELECT name, ST_AsText(geom) FROM geometries;
上面的示例 SQL 代码创建了一个名为 geometries 的数据表，插入了 5 个几何对象：1 点，1 线，1 多边形，1 带洞多边形，1 集合。最后，使用 SELECT 语句把插入的数据选出来并输出到面板上。
9.2. 元数据表¶

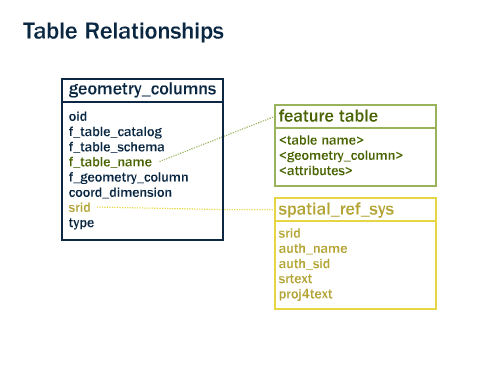

In conformance with the Simple Features for SQL (SFSQL) specification, PostGIS provides two tables to track and report on the geometry types available in a given database.
The first table,
spatial_ref_sys
, defines all the spatial reference systems known to the database and will be described in greater detail later.The second table (actually, a view),
geometry_columns
, provides a listing of all "features" (defined as an object with geometric attributes), and the basic details of those features.
Let's have a look at the geometry_columns
table in our database. Paste this command in the Query Tool as before:

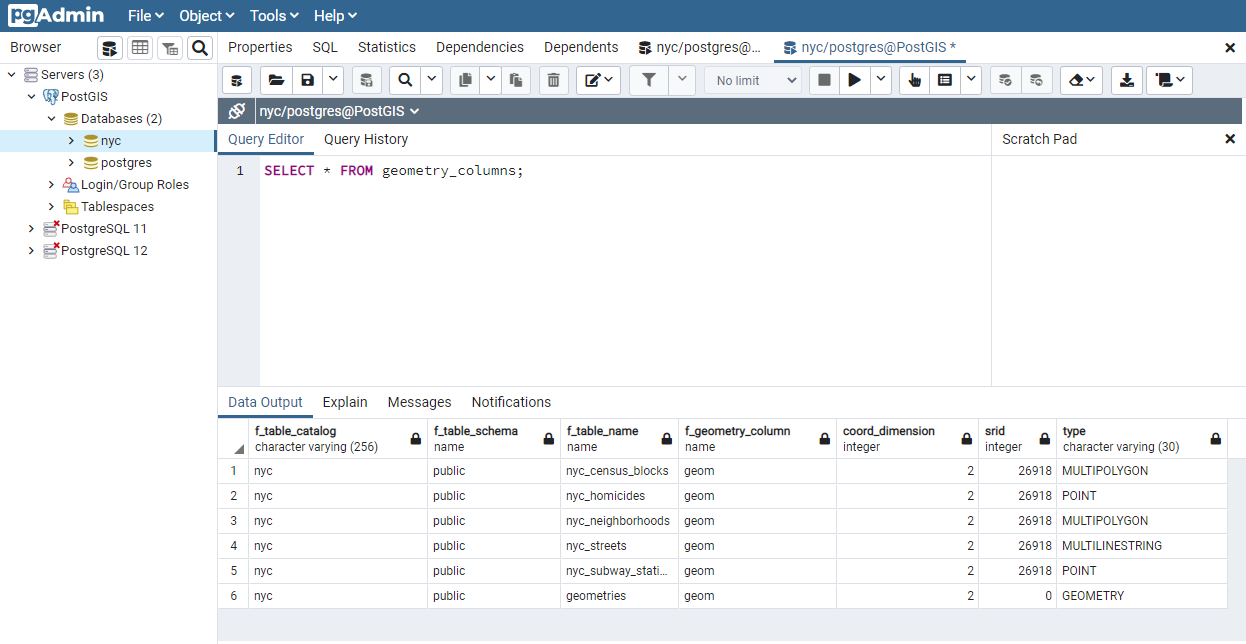

SELECT * FROM geometry_columns;
f_table_catalog
,f_table_schema
, andf_table_name
provide the fully qualified name of the feature table containing a given geometry. Because PostgreSQL doesn't make use of catalogs,f_table_catalog
will tend to be empty.f_geometry_column
is the name of the column that geometry containing column  for feature tables with multiple geometry columns, there will be one record for each.coord_dimension
andsrid
define the the dimension of the geometry (2, 3 or 4dimensional) and the Spatial Reference system identifier that refers to thespatial_ref_sys
table respectively.The
type
column defines the type of geometry as described below; we've seen Point and Linestring types so far.
By querying this table, GIS clients and libraries can determine what to expect when retrieving data and can perform any necessary projection, processing or rendering without needing to inspect each geometry.
注解
Do some or all of your
nyc
tables not have ansrid
of 26918? It's easy to fix by updating the table.
ALTER TABLE nyc_neighborhoods
ALTER COLUMN geom
TYPE Geometry(MultiPolygon, 26918)
USING ST_SetSRID(geom, 26918);
9.3. 表示真实世界的对象¶
The Simple Features for SQL (SFSQL) specification, the original guiding standard for PostGIS development, defines how a real world object is represented. By taking a continuous shape and digitizing it at a fixed resolution we achieve a passable representation of the object. SFSQL only handled 2dimensional representations. PostGIS has extended that to include 3 and 4dimensional representations; more recently the SQLMultimedia Part 3 (SQL/MM) specification has officially defined their own representation.
Our example table contains a mixture of different geometry types. We can collect general information about each object using functions that read the geometry metadata.
ST_GeometryType(geometry) returns the type of the geometry
ST_NDims(geometry) returns the number of dimensions of the geometry
ST_SRID(geometry) returns the spatial reference identifier number of the geometry
SELECT name, ST_GeometryType(geom), ST_NDims(geom), ST_SRID(geom)
FROM geometries;
name  st_geometrytype  st_ndims  st_srid
+++
Point  ST_Point  2  0
Polygon  ST_Polygon  2  0
PolygonWithHole  ST_Polygon  2  0
Collection  ST_GeometryCollection  2  0
Linestring  ST_LineString  2  0
9.3.1. 点¶
A spatial point represents a single location on the Earth. This point is represented by a single coordinate (including either 2, 3 or 4dimensions). Points are used to represent objects when the exact details, such as shape and size, are not important at the target scale. For example, cities on a map of the world can be described as points, while a map of a single state might represent cities as polygons.
SELECT ST_AsText(geom)
FROM geometries
WHERE name = 'Point';
POINT(0 0)
Some of the specific spatial functions for working with points are:
ST_X(geometry) returns the X ordinate
ST_Y(geometry) returns the Y ordinate
So, we can read the ordinates from a point like this:
SELECT ST_X(geom), ST_Y(geom)
FROM geometries
WHERE name = 'Point';
The New York City subway stations (nyc_subway_stations
) table is a data set represented as points. The following SQL query will return the geometry associated with one point (in the ST_AsText column).
SELECT name, ST_AsText(geom)
FROM nyc_subway_stations
LIMIT 1;
9.3.2. 线串¶

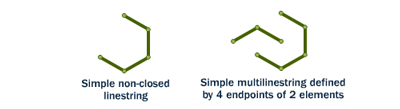

A linestring is a path between locations. It takes the form of an ordered series of two or more points. Roads and rivers are typically represented as linestrings. A linestring is said to be closed if it starts and ends on the same point. It is said to be simple if it does not cross or touch itself (except at its endpoints if it is closed). A linestring can be both closed and simple.
The street network for New York (nyc_streets
) was loaded earlier in the workshop. This dataset contains details such as name, and type. A single real world street may consist of many linestrings, each representing a segment of road with different attributes.
The following SQL query will return the geometry associated with one linestring (in the ST_AsText column).
SELECT ST_AsText(geom)
FROM geometries
WHERE name = 'Linestring';
LINESTRING(0 0, 1 1, 2 1, 2 2)
Some of the specific spatial functions for working with linestrings are:
ST_Length(geometry) returns the length of the linestring
ST_StartPoint(geometry) returns the first coordinate as a point
ST_EndPoint(geometry) returns the last coordinate as a point
ST_NPoints(geometry) returns the number of coordinates in the linestring
So, the length of our linestring is:
SELECT ST_Length(geom)
FROM geometries
WHERE name = 'Linestring';
3.41421356237309
9.3.3. 多边形¶

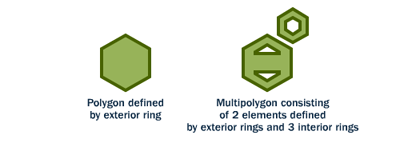

A polygon is a representation of an area. The outer boundary of the polygon is represented by a ring. This ring is a linestring that is both closed and simple as defined above. Holes within the polygon are also represented by rings.
Polygons are used to represent objects whose size and shape are important. City limits, parks, building footprints or bodies of water are all commonly represented as polygons when the scale is sufficiently high to see their area. Roads and rivers can sometimes be represented as polygons.
The following SQL query will return the geometry associated with one polygon (in the ST_AsText column).
SELECT ST_AsText(geom)
FROM geometries
WHERE name LIKE 'Polygon%';
注解
Rather than using an =
sign in our WHERE
clause, we are using the LIKE
operator to carry out a string matching operation. You may be used to the ``*`` symbol as a "glob" for pattern matching, but in SQL the ``%`` symbol is used, along with the LIKE
operator to tell the system to do globbing.

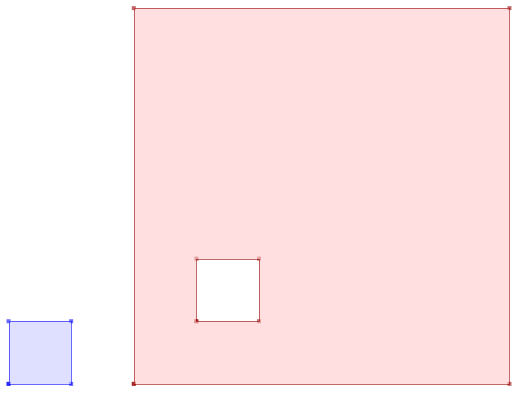

POLYGON((0 0, 1 0, 1 1, 0 1, 0 0))
POLYGON((0 0, 10 0, 10 10, 0 10, 0 0),(1 1, 1 2, 2 2, 2 1, 1 1))
The first polygon has only one ring. The second one has an interior "hole". Most graphics systems include the concept of a "polygon", but GIS systems are relatively unique in allowing polygons to explicitly have holes.
Some of the specific spatial functions for working with polygons are:
ST_Area(geometry) returns the area of the polygons
ST_NRings(geometry) returns the number of rings (usually 1, more if there are holes)
ST_ExteriorRing(geometry) returns the outer ring as a linestring
ST_InteriorRingN(geometry,n) returns a specified interior ring as a linestring
ST_Perimeter(geometry) returns the length of all the rings
We can calculate the area of our polygons using the area function:
SELECT name, ST_Area(geom)
FROM geometries
WHERE name LIKE 'Polygon%';
Polygon 1
PolygonWithHole 99
Note that the polygon with a hole has an area that is the area of the outer shell (a 10x10 square) minus the area of the hole (a 1x1 square).
9.3.4. 集合¶
There are four collection types, which group multiple simple geometries into sets.
MultiPoint, a collection of points
MultiLineString, a collection of linestrings
MultiPolygon, a collection of polygons
GeometryCollection, a heterogeneous collection of any geometry (including other collections)

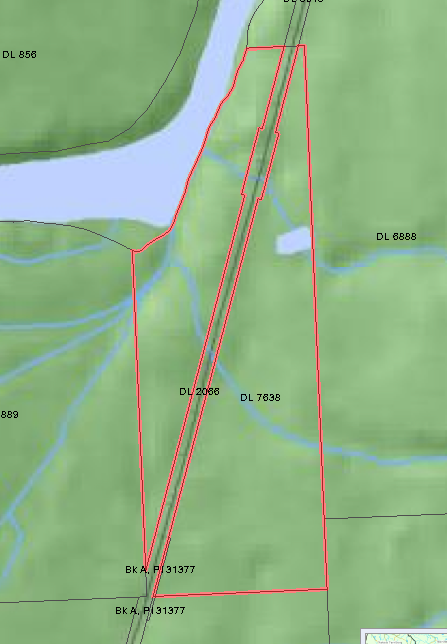

Collections are another concept that shows up in GIS software more than in generic graphics software. They are useful for directly modeling real world objects as spatial objects. For example, how to model a lot that is split by a rightofway? As a MultiPolygon, with a part on either side of the rightofway.
Our example collection contains a polygon and a point:
SELECT name, ST_AsText(geom)
FROM geometries
WHERE name = 'Collection';
GEOMETRYCOLLECTION(POINT(2 0),POLYGON((0 0, 1 0, 1 1, 0 1, 0 0)))
Some of the specific spatial functions for working with collections are:
ST_NumGeometries(geometry) returns the number of parts in the collection
ST_GeometryN(geometry,n) returns the specified part
ST_Area(geometry) returns the total area of all polygonal parts
ST_Length(geometry) returns the total length of all linear parts
9.4. 几何的输入输出¶
Within the database, geometries are stored on disk in a format only used by the PostGIS program. In order for external programs to insert and retrieve useful geometries, they need to be converted into a format that other applications can understand. Fortunately, PostGIS supports emitting and consuming geometries in a large number of formats:
Wellknown text (WKT)
ST_GeomFromText(text, srid) returns
geometry
ST_AsText(geometry) returns
text
ST_AsEWKT(geometry) returns
text
Wellknown binary (WKB)
ST_GeomFromWKB(bytea) returns
geometry
ST_AsBinary(geometry) returns
bytea
ST_AsEWKB(geometry) returns
bytea
Geographic Markup Language (GML)
ST_GeomFromGML(text) returns
geometry
ST_AsGML(geometry) returns
text
Keyhole Markup Language (KML)
ST_GeomFromKML(text) returns
geometry
ST_AsKML(geometry) returns
text

ST_AsGeoJSON(geometry) returns
text
Scalable Vector Graphics (SVG)
ST_AsSVG(geometry) returns
text
The most common use of a constructor is to turn a text representation of a geometry into an internal representation:
Note that in addition to a text parameter with a geometry representation, we also have a numeric parameter providing the SRID of the geometry.
The following SQL query shows an example of WKB representation (the call to encode() is required to convert the binary output into an ASCII form for printing):
SELECT encode(
ST_AsBinary(ST_GeometryFromText('LINESTRING(0 0,1 0)')),
'hex');
01020000000200000000000000000000000000000000000000000000000000f03f0000000000000000
For the purposes of this workshop we will continue to use WKT to ensure you can read and understand the geometries we're viewing. However, most actual processes, such as viewing data in a GIS application, transferring data to a web service, or processing data remotely, WKB is the format of choice.
Since WKT and WKB were defined in the SFSQL specification, they do not handle 3 or 4dimensional geometries. For these cases PostGIS has defined the Extended Well Known Text (EWKT) and Extended Well Known Binary (EWKB) formats. These provide the same formatting capabilities of WKT and WKB with the added dimensionality.
Here is an example of a 3D linestring in WKT:
SELECT ST_AsText(ST_GeometryFromText('LINESTRING(0 0 0,1 0 0,1 1 2)'));
LINESTRING Z (0 0 0,1 0 0,1 1 2)
Note that the text representation changes! This is because the text input routine for PostGIS is liberal in what it consumes. It will consume
hexencoded EWKB,
extended wellknown text, and
ISO standard wellknown text.
On the output side, the ST_AsText function is conservative, and only emits ISO standard wellknown text.
In addition to the ST_GeometryFromText function, there are many other ways to create geometries from wellknown text or similar formatted inputs:
 Using ST_GeomFromText with the SRID parameter
SELECT ST_GeomFromText('POINT(2 2)',4326);
 Using ST_GeomFromText without the SRID parameter
SELECT ST_SetSRID(ST_GeomFromText('POINT(2 2)'),4326);
 Using a ST_Make* function
SELECT ST_SetSRID(ST_MakePoint(2, 2), 4326);
 Using PostgreSQL casting syntax and ISO WKT
SELECT ST_SetSRID('POINT(2 2)'::geometry, 4326);
 Using PostgreSQL casting syntax and extended WKT
SELECT 'SRID=4326;POINT(2 2)'::geometry;
In addition to emitters for the various forms (WKT, WKB, GML, KML, JSON, SVG), PostGIS also has consumers for four (WKT, WKB, GML, KML). Most applications use the WKT or WKB geometry creation functions, but the others work too. Here's an example that consumes GML and output JSON:

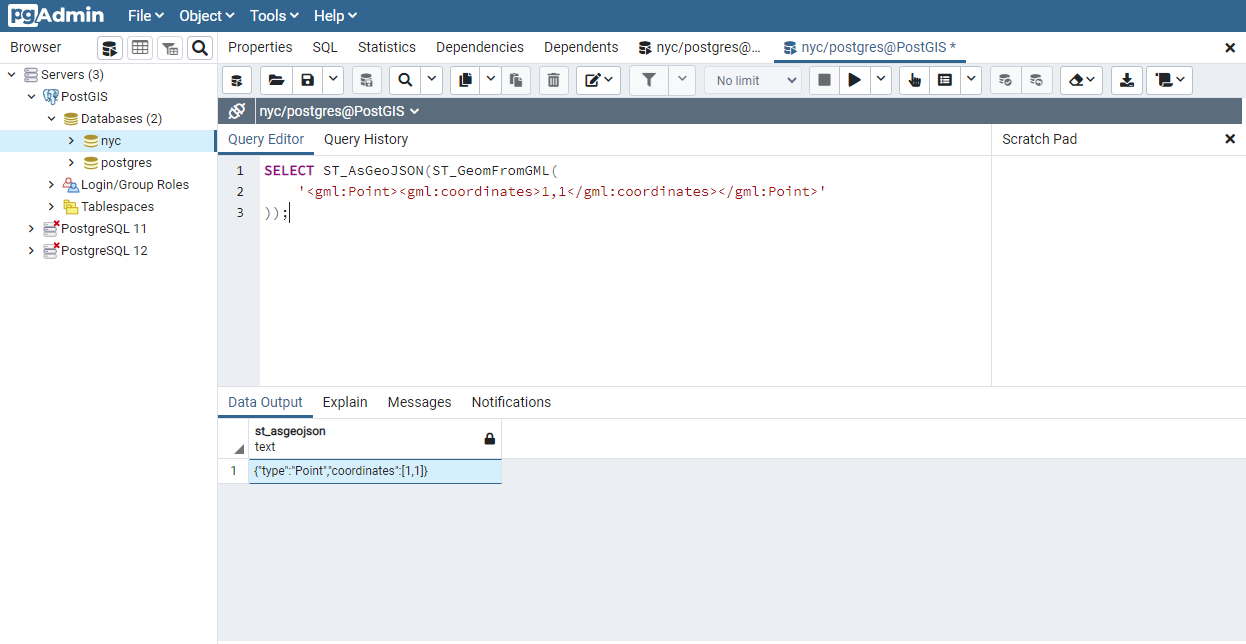

SELECT ST_AsGeoJSON(ST_GeomFromGML('<gml:Point><gml:coordinates>1,1</gml:coordinates></gml:Point>'));
9.5. 从文本中解析¶
The WKT strings we've see so far have been of type 'text' and we have been converting them to type 'geometry' using PostGIS functions like ST_GeomFromText().
PostgreSQL includes a short form syntax that allows data to be converted from one type to another, the casting syntax, oldata::newtype. So for example, this SQL converts a double into a text string.
SELECT 0.9::text;
Less trivially, this SQL converts a WKT string into a geometry:
SELECT 'POINT(0 0)'::geometry;
One thing to note about using casting to create geometries: unless you specify the SRID, you will get a geometry with an unknown SRID. You can specify the SRID using the "extended" wellknown text form, which includes an SRID block at the front:
SELECT 'SRID=4326;POINT(0 0)'::geometry;
It's very common to use the casting notation when working with WKT, as well as geometry and geography columns (see Geography).
9.6. 函数列表¶
ST_Area: Returns the area of the surface if it is a polygon or multipolygon. For "geometry" type area is in SRID units. For "geography" area is in square meters.
ST_AsText: Returns the WellKnown Text (WKT) representation of the geometry/geography without SRID metadata.
ST_AsBinary: Returns the WellKnown Binary (WKB) representation of the geometry/geography without SRID meta data.
ST_EndPoint: Returns the last point of a LINESTRING geometry as a POINT.
ST_AsEWKB: Returns the WellKnown Binary (WKB) representation of the geometry with SRID meta data.
ST_AsEWKT: Returns the WellKnown Text (WKT) representation of the geometry with SRID meta data.
ST_AsGeoJSON: Returns the geometry as a GeoJSON element.
ST_AsGML: Returns the geometry as a GML version 2 or 3 element.
ST_AsKML: Returns the geometry as a KML element. Several variants. Default version=2, default precision=15.
ST_AsSVG: Returns a Geometry in SVG path data given a geometry or geography object.
ST_ExteriorRing: Returns a line string representing the exterior ring of the POLYGON geometry. Return NULL if the geometry is not a polygon. Will not work with MULTIPOLYGON
ST_GeometryN: Returns the 1based Nth geometry if the geometry is a GEOMETRYCOLLECTION, MULTIPOINT, MULTILINESTRING, MULTICURVE or MULTIPOLYGON. Otherwise, return NULL.
ST_GeomFromGML：输入 GML，并输出为 PostGIS 的几何对象。
ST_GeomFromKML: Takes as input KML representation of geometry and outputs a PostGIS geometry object
ST_GeomFromText: Returns a specified ST_Geometry value from WellKnown Text representation (WKT).
ST_GeomFromWKB: Creates a geometry instance from a WellKnown Binary geometry representation (WKB) and optional SRID.
ST_GeometryType: Returns the geometry type of the ST_Geometry value.
ST_InteriorRingN: Returns the Nth interior linestring ring of the polygon geometry. Return NULL if the geometry is not a polygon or the given N is out of range.
ST_Length: Returns the 2d length of the geometry if it is a linestring or multilinestring. geometry are in units of spatial reference and geography are in meters (default spheroid)
ST_NDims: Returns coordinate dimension of the geometry as a small int. Values are: 2,3 or 4.
ST_NPoints: Returns the number of points (vertexes) in a geometry.
ST_NRings: If the geometry is a polygon or multipolygon returns the number of rings.
ST_NumGeometries: If geometry is a GEOMETRYCOLLECTION (or MULTI*) returns the number of geometries, otherwise return NULL.
ST_Perimeter: Returns the length measurement of the boundary of an ST_Surface or ST_MultiSurface value. (Polygon, Multipolygon)
ST_SRID: Returns the spatial reference identifier for the ST_Geometry as defined in spatial_ref_sys table.
ST_StartPoint: Returns the first point of a LINESTRING geometry as a POINT.
ST_X: Returns the X coordinate of the point, or NULL if not available. Input must be a point.
ST_Y: Returns the Y coordinate of the point, or NULL if not available. Input must be a point.
